    Use cable ducts and duct systems with diameter > 110 mm for fibre optic.

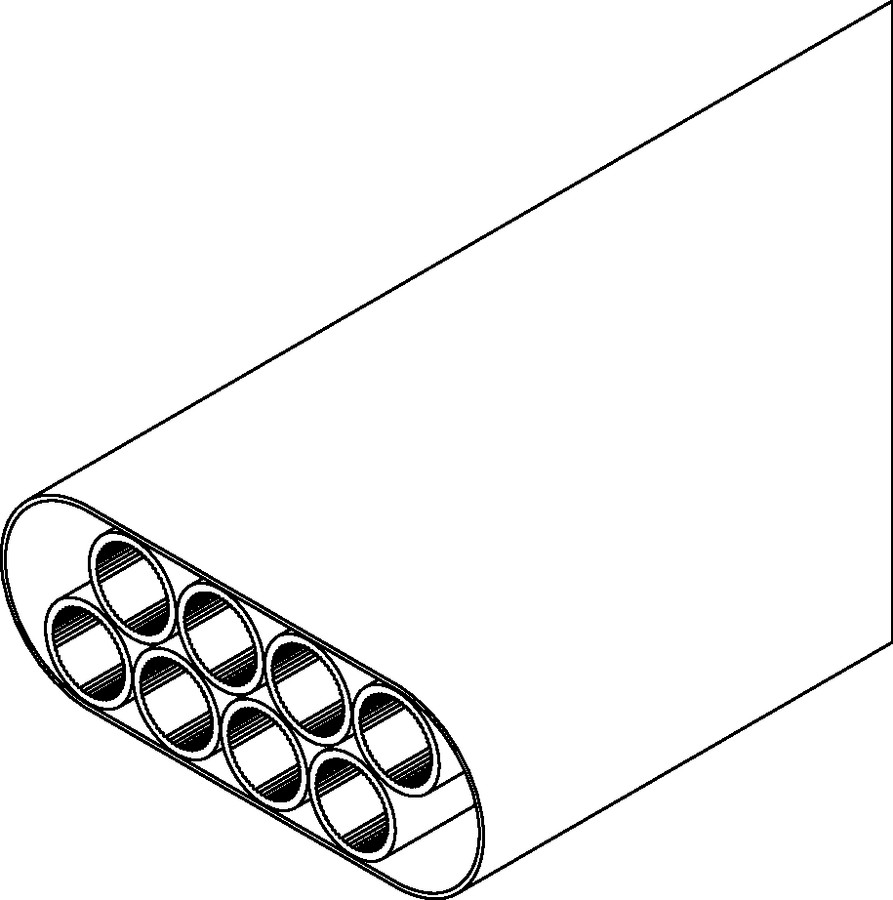

Thin-walled speedpipe single ducts in connections: SRV

duennwandige speedpipe Einzelroehrchenverbund

By means of a cable grip on the flexible jacket pipe the speedpipe bundles SRV are drawn into cable ducts.

Main use in practice for blowing in fibre optics: distribution level FTTN and FTTC

speedpipe Rohrverbaende
  • Two bundles of eight speedpipe 10 x 1,0 mm can be drawn into an empty cable duct Ø 110 mm.

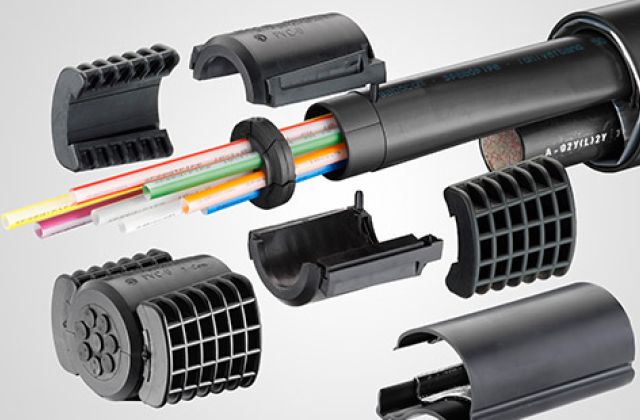

  • Even in case of an occupancy with a cable up to Ø 55 mm the SRV optimally exploits the residual section for additional fibre optic cables.
  • The comparison with a standard multi-duct MR4 regarding material and effort clearly is in favour of the bundle.

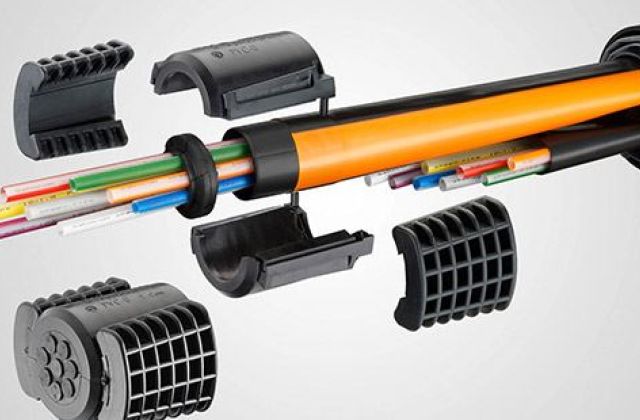

Each subduct system only is as good as its durability! For long usability and protection of your active network technology gas-, dirt- and water-tight sealing and fixing elements are essential.

  • Supplied on a wooden one-way spool: 2400×1200 mm

    Total weight incl. spool: ca. 1100kg
