    Milling method for speedpipe bundles ground for the new construction of duct routes

Milling technologies and trenching.

A cheap and quick variant for the new construction of fibre optic routes within localities.

Speedpipe-ground einfraesen/trenching

Quickly also within localities.

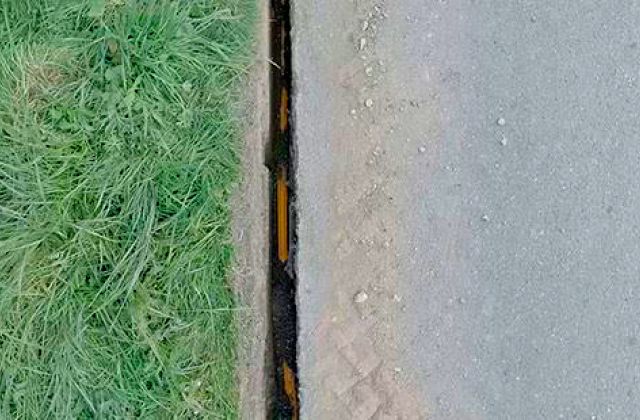

Narrow duct trenches are milled in and under asphalt in applying the trench milling method.

After having layed the speedpipe ground bundle in the duct trench under tension, the road surface is closed with the appropriate filling.

Speedpipe Rohrverband SRV-g tc Trenchinverfahren

How it works:

We recommend the application of this method preferably on pavements, cycle paths and roads with reduced load. So far no long-term experience is available concerning road damages and effects on speedpipe ground.

gabocom speedpipe Rohrverband SRV-g tc einfraesen

Benefits Milling technologies and trenching

  • Saves on construction costs € 40 to 80 per metre
  • High daily output (250 to 600 m)
  • Less impact on traffic and local residents thanks to short construction times

Source: Installation concepts in fibre optic expansion - Adams Consult (Whitepaper)

What is strictly to observe at the milling process?

  •  No stones on speedpipe ground or SRV-G tc

  •  Straight laying of SRV-G tc

  •  Laying under tension

  •  Lay SRV-G tc linearly, planely and without twisting

  •  Branching by use of TBS and LBS

  •  never expose speedpipe ground and SRV-G tc to temperatures higher than 80 °C

Impressions from practice

  • speedpipe-rohrverband-einfraesen-trenching.jpg
  • speedpipe-rohrverband_srv-g-tc_einfraesen.jpg
  • gabocom_speedpipe-rohrverband_srv-g-tc_einfraesen.jpg

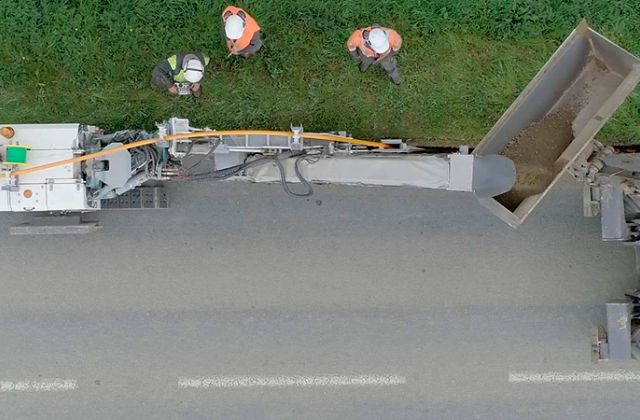

  • gabocom_speedpipe-rohrverband_srv-g-tc_einfraesen_1.jpg
  • gabocom_speedpipe-rohrverband_srv-g-tc.jpg
  • slider_gabocom_speedpipe-rohrverband_srv-g-tc.jpg

    Laying instruction & Whitepaper


    Laying Instruction for

    speedpipe bundle ground SRV-G / SRV-G tc



    Installation concepts in fibre optic expansion

    speedpipe bundles ground
