    Flexible and pressure-tight

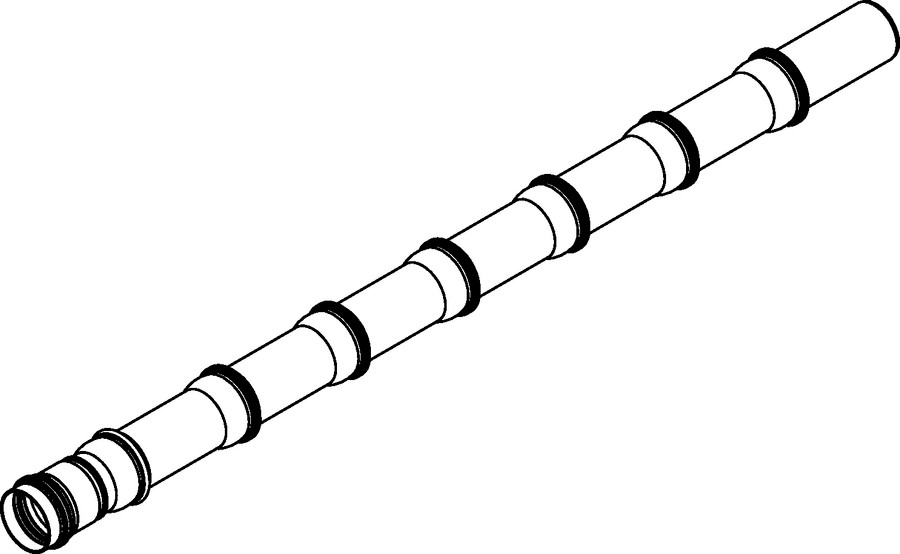

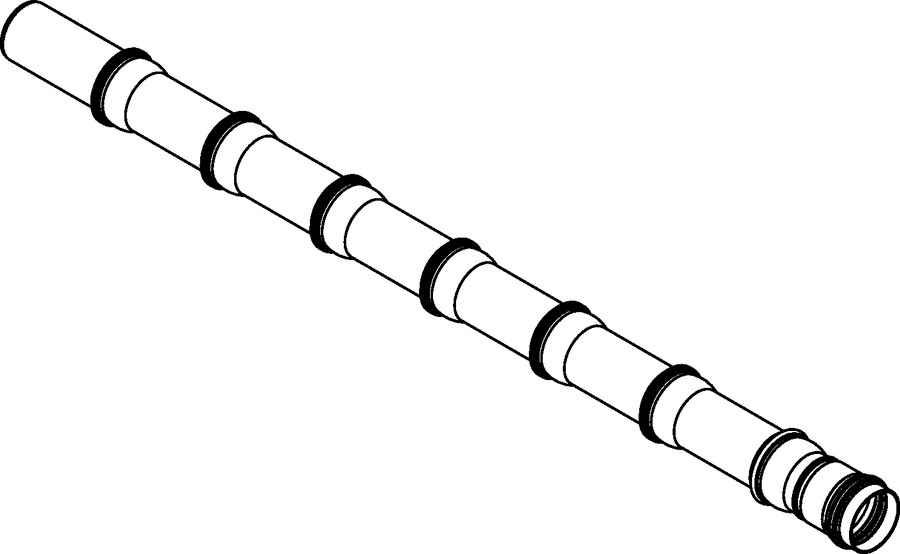

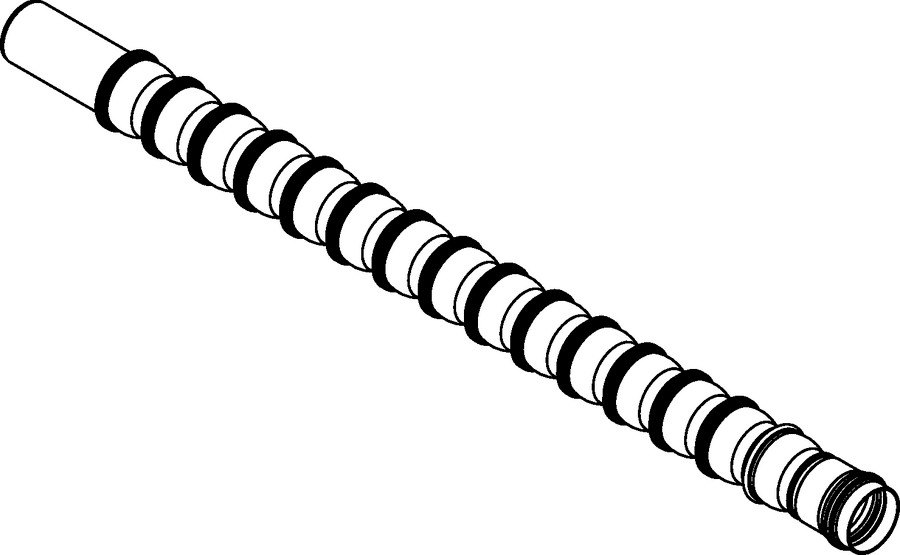

Cable duct joint bends

Kabelkanal Gelenkboegen

The cable duct joint bends KKGB and the divisible cable duct joint bend KKGB-t are used in a variety of possible applications:

  • for redirecting the duct route in case of obstacles or external plants like gas pipes or district heating pipelines
  • in case of height or lateral differences of duct routes
  • in case of changes in the duct route level due to slopes or subsidence when crossing the road
  • for skipping obstacles within a bend area
  • for branching off and refixing ducts into the duct route
  • in case of local tightness at distribution boxes, cable manholes or distribution stations
  • for connection ranges that do not align
  • generally in rough terrain

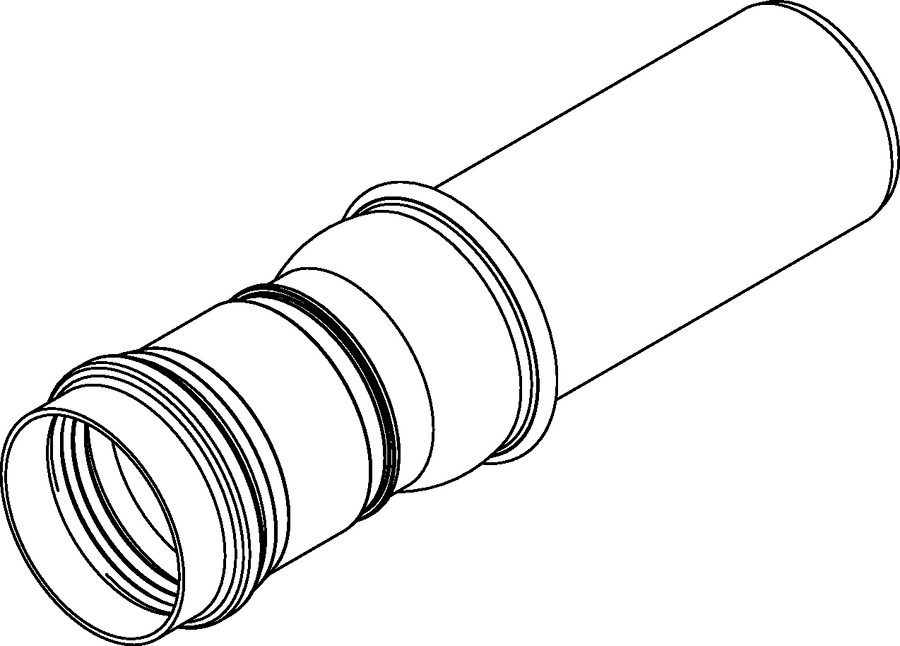

The flexible duct bends with socket and insertion end include the smallest possible bending radius limit.
Furthermore they are gas- and water-tight up to 0.5 bar.

  • After entering your personal data, you will receive access data to our download module to the email address you provided. You can then download the required documents for this product. Please select the relevant documents above the form.
    Download descriptionCategoryLast update
    KKGB 45 / 90
    Access to the document, register here.
    Technical data sheets10.05.2023
    KKGB 110 / 8°
    Access to the document, register here.
    Technical data sheets29.04.2024
    KKGB-t 110 / 8°
    Access to the document, register here.
    Technical data sheets10.05.2023
