• rohrbunde.jpg

    Applications for fiber optic house connections.

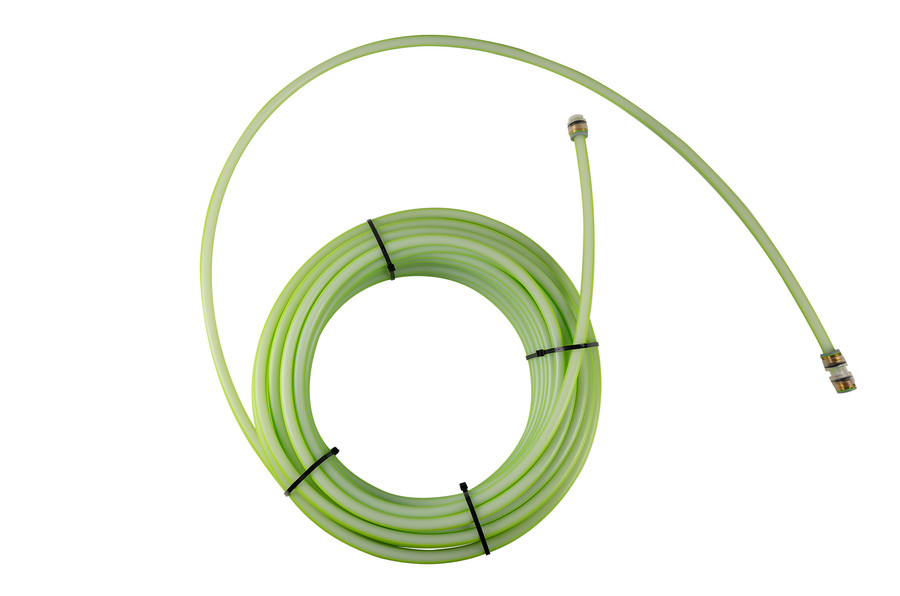

speedpipe coil

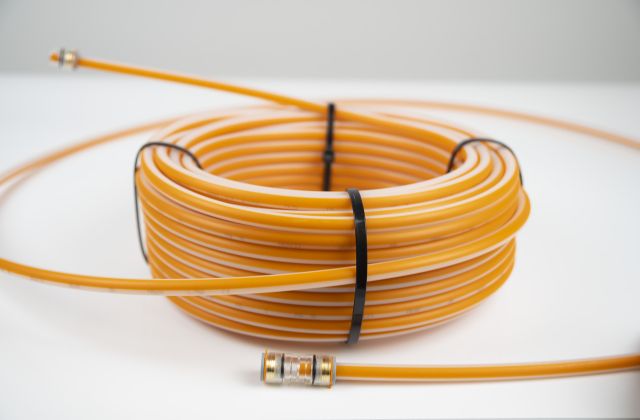

Ringbund 7

speedpipe coils help to prepare and realize house connections efficiently.

  • House branches from the speedpipe bundle can already be made when the main line is laid and can be laid on the property as required.
  • The microduct can be laid from the speedpipe coil to the inside of the building for later connection.
  • In areas where broadband expansion has not yet been completed, the speedpipe coil can be used to lay the microduct from the house to the street so that the microduct can then be connected to the main route at a later date. This means that new civil engineering work on private property can be avoided.
Ringbund 10

gabocom also offers marking systems so that the deposit point of the speedpipe coil can be located.

Each set consists of:

  • 1x coil speedpipe ground
  • 1x end-stops ES
  • 1x connector DSM
Ringbund Vorteile


  • End-to-end solution from a single source: from network level 3 via the house lead-in to the inside of the building
  • Flexible planning and preparation of house connection
  • Optimal for tight spaces
  • Easy transport with low total weight
  • speedpipe coil can be laid as long as the house connection trench is open and the house wall is uncovered
  • easy unwinding without special equipment
  • accessories already professionally installed
  • sealing elements: 0.5 bar gas- and water-tight, tensile and buriable
  • After entering your personal data, you will receive access data to our download module to the email address you provided. You can then download the required documents for this product. Please select the relevant documents above the form.
    Download descriptionCategoryLast update
    speedpipe coil Flyer22.09.2023
    speedpipe coil 7x1,5
    Access to the document, register here.
    Technical data sheets23.11.2023
    speedpipe coil 10x2,0
    Access to the document, register here.
    Technical data sheets23.11.2023
    speedpipe coil 12x2,0
    Access to the document, register here.
    Technical data sheets23.11.2023
    No information will be transferred to third parties. I can revoke my consent to gabo Systemtechnik GmbH at any time. I can withdraw my consent at any time Send an E-Mail. Further information dealing with privacy povlicy can be found in the data privacy statement.
    * Required fields

    Have you already registered?
    You can log in here

  • You have questions about gabo Systemtechnik GmbH?


    Contact us!

    Our employees are at your disposal.
    Contact us now

Connectors DSM

By means of the transparent connectors, two speedpipe of the same type can be connected.

Learn more

End-stops ES

The cover of the speedpipe ends protects the entire pipe system against water, dirt and gas ingress.

Learn more

House lead-ins

So that buildings can be connected to the fiber optic network quickly and easily.

Learn more


The gabocom markerpeg is used for locating and should be inserted vertically into the ground. The ring bundle can be located with it.

Learn more
