    Protection and stiffening function all in one

stiffeners for bundles with lose outer sheath

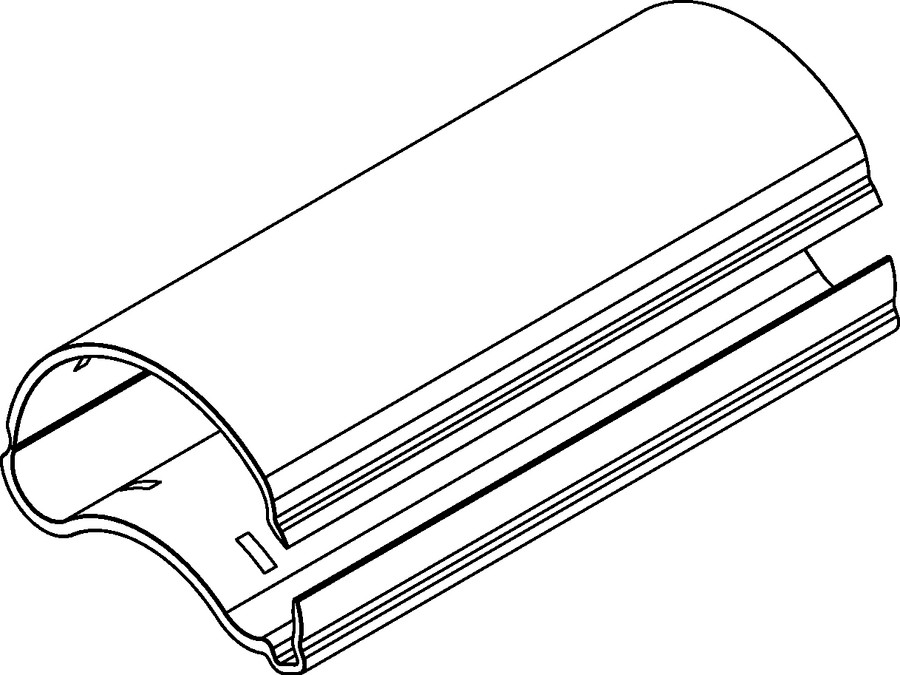

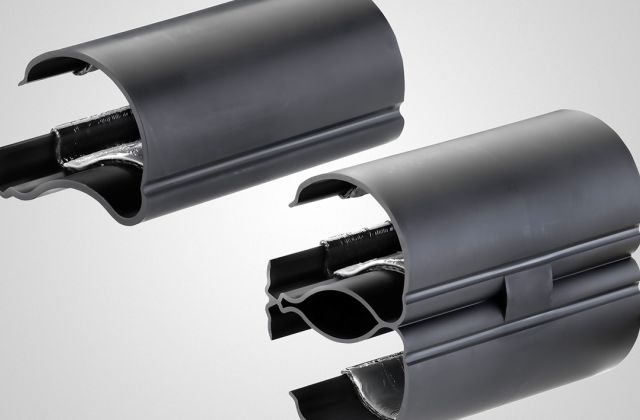

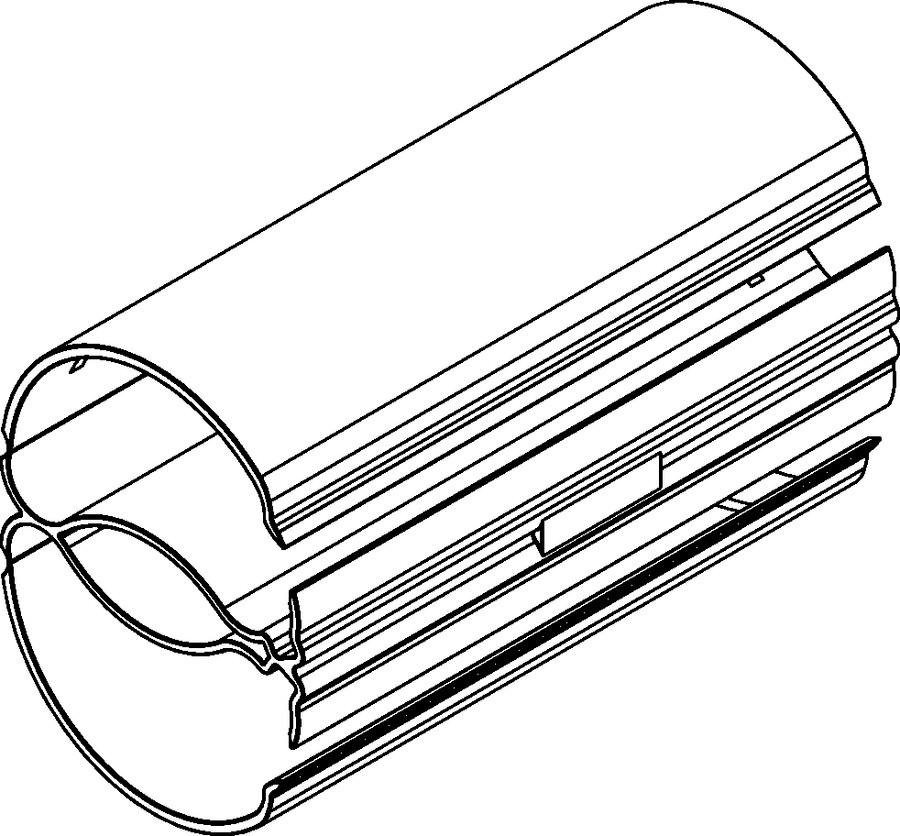

(Double-) outside stiffener - for bundles SRV:

The sealing element ADE / TDUX 90 / 100 (CommScope) seals occupied cable ducts > 110 mm. Thereto the siffeners strengthen the flexible jacket duct of up to two SRV 50 / 8 x 10 from the outside. Thus the divisible fittings avoid that the pressure of the TDUX changes the shape of the internal speedpipe (ovalisation).
Fibre optic cables furtheron can be blown in.

Stützhülse innen für Rohrverbände Rohr-in-Rohr

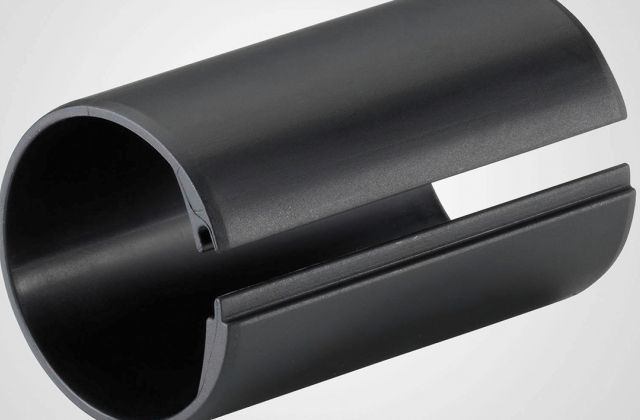

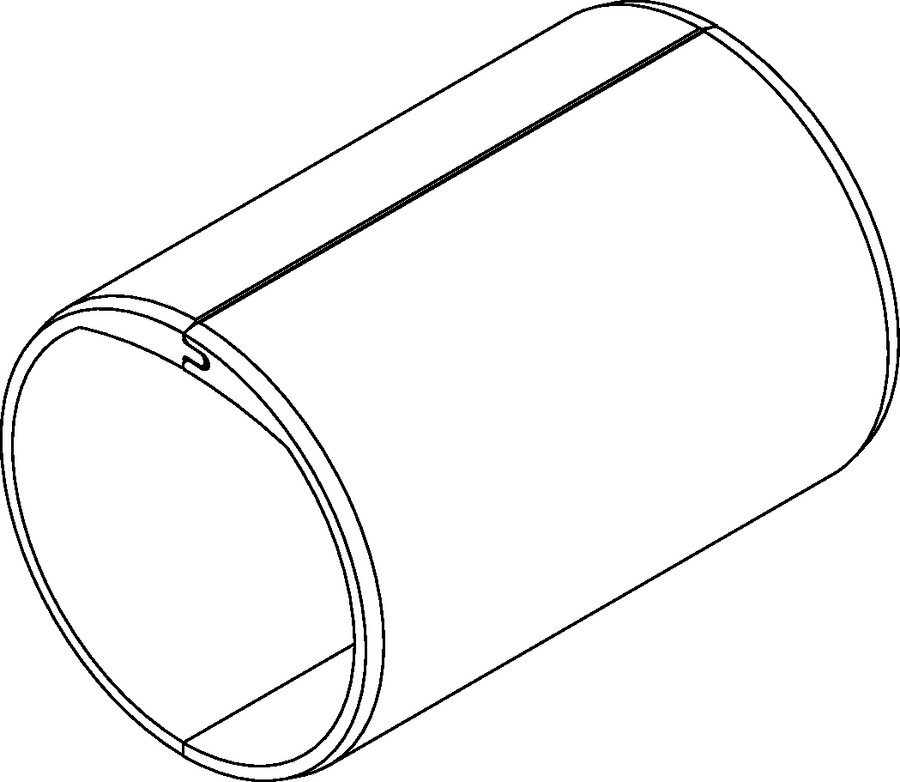

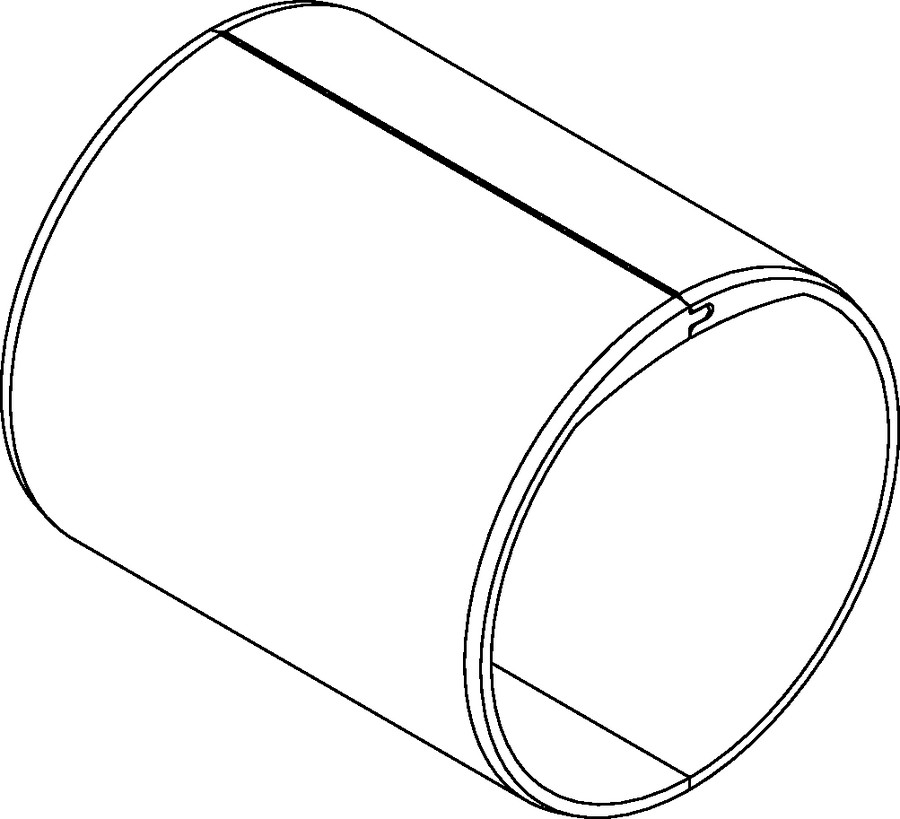

Inside stiffener - for all in-duct bundles:

before assembling the divisible seals the flexible jacket duct of the speedpipe bundle SRV and SRV-G is strengthened with a stiffener. A round duct with a standardised diameter is the result. The clamping rings of the sealing elements gain traction without damaging the internal speedpipe.

  • After entering your personal data, you will receive access data to our download module to the email address you provided. You can then download the required documents for this product. Please select the relevant documents above the form.
    Download descriptionCategoryLast update
    SHi Assembly instructions23.02.2022
    SHa / DSHaAssembly instructions23.02.2022
    SHa / DSHa
    Access to the document, register here.
    Technical data sheets10.05.2023
    Access to the document, register here.
    Technical data sheets10.05.2023
