Straight Duct

Straight Duct - Solid

Article-Nr.: 181-00412

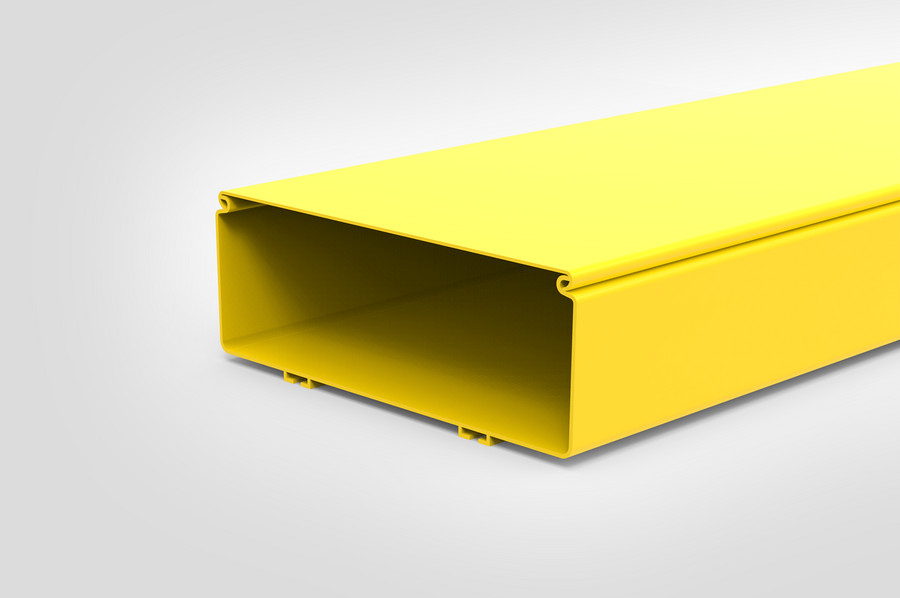

300mm Horizontal Straight Duct is used to support straight runs of optical fibre cable. GigaDuct is easily joined together using a combination of elbows, T-junctions, intersections, reducers and couplers. A variety of mounting options are available to support different installation environments. Supplied in 1.8m lengths with cover.

• Made from LSZH-FR UL94/V0 material
• Supplied in 1.8m lengths
• Compatible with 300mm GigaDuct Fibre Raceway accessories
• Supplied with cover
• Segregates fibre optic cable from other media to provide flexibility for future additions or changes
• Fully encloses cables to keep out dirt and dust as the fibre is routed through different areas of the data centre
• Protects cables by maintaining proper bend radius, preventing micro bends and macro bends that degrade performance
• Maintains attractive aesthetics by enclosing cables throughout the facility
