speedpipe ground.

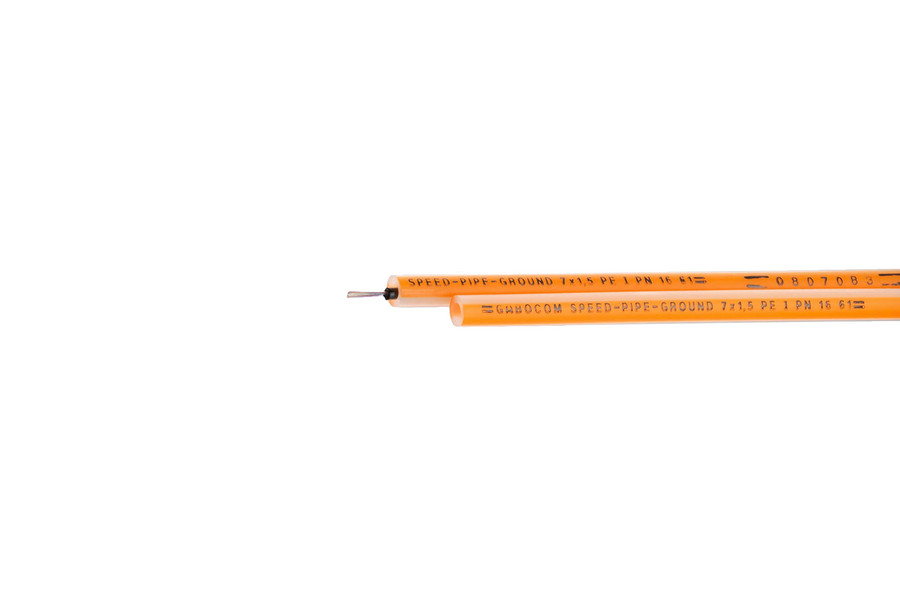

speedpipe ground 7x1,5
Article-Nr.: 2223
For the extension or new construction of passive infrastructure in fibre optic expansion. speedpipe ground are suitable for direct burying in all FTTx-sections as well as für branching-off from existing duct routes. Due to the dimensionally stable wall thickness made from first-class PE-HD protects each speedpipe ground duct system against the emerging ground pressure. Due to a higher vertex pressure in comparison to for example a PE-HD duct 50 × 4.6 the pipes stay in shape. Sliding ribs specified for any dimension ensure an optimal air cushion of the fibre optic during the blowing-in process, even after decades.
Technical details
| Diameter (D) | 7 |
| Wall (WT) | 1.5 mm |
| Length (L) | 1250 m |
| Cable ∅ min | 1 mm |
| Cable ∅ max | 2.7 mm |
| Colour | Orange (OG) |
| Pressure Nominal (PN) | PN 16 |
| Weight/Unit | 0.025 kg |
| Packaging Content SKU Unit | meter |
| Packaging 1 - Qty | 1250 |
| Packaging 1 - Weight (kg) | 39.25 kg |
| Packaging 1 - Type | drum |
| Packaging 2 - Qty | 6250 |
| Packaging 2 - Type | pallet |
| Local order number | 2223 |
All dimensions in mm. Subject to technical changes.
