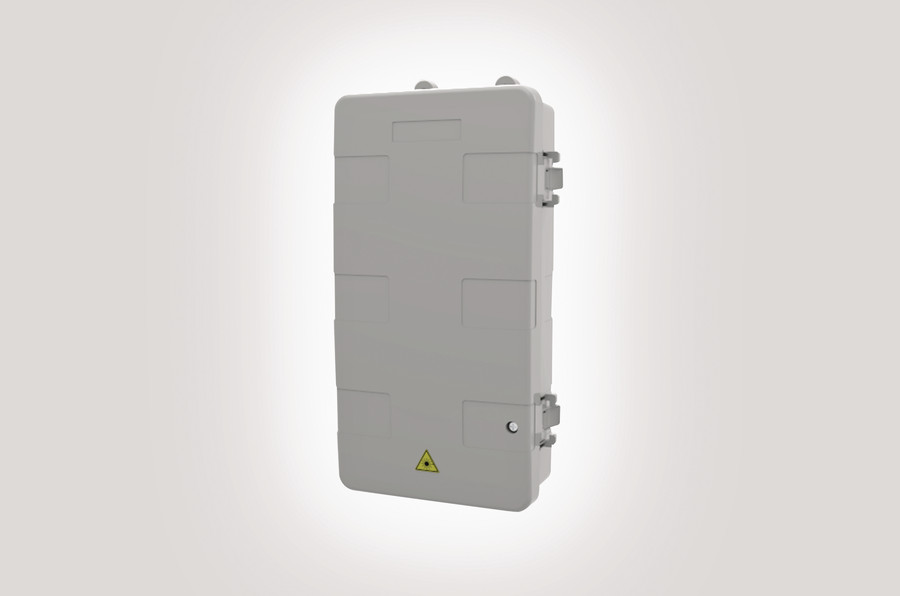

S2 Series MDU/MBU Enclosures

Fibre Optic External Enclosure

Article-Nr.: 857-02812

The HellermannTyton MDU S2 Series of enclosures provides a cost effective secure solution for installing pre-terminated drop cables in Fibre to the Home (FTTH) applications.The enclosure has been designed to physically separate the feeder cable 250μm fibres from the customer connection points. It is designed to deliver up to 24 drop cable customer connections.

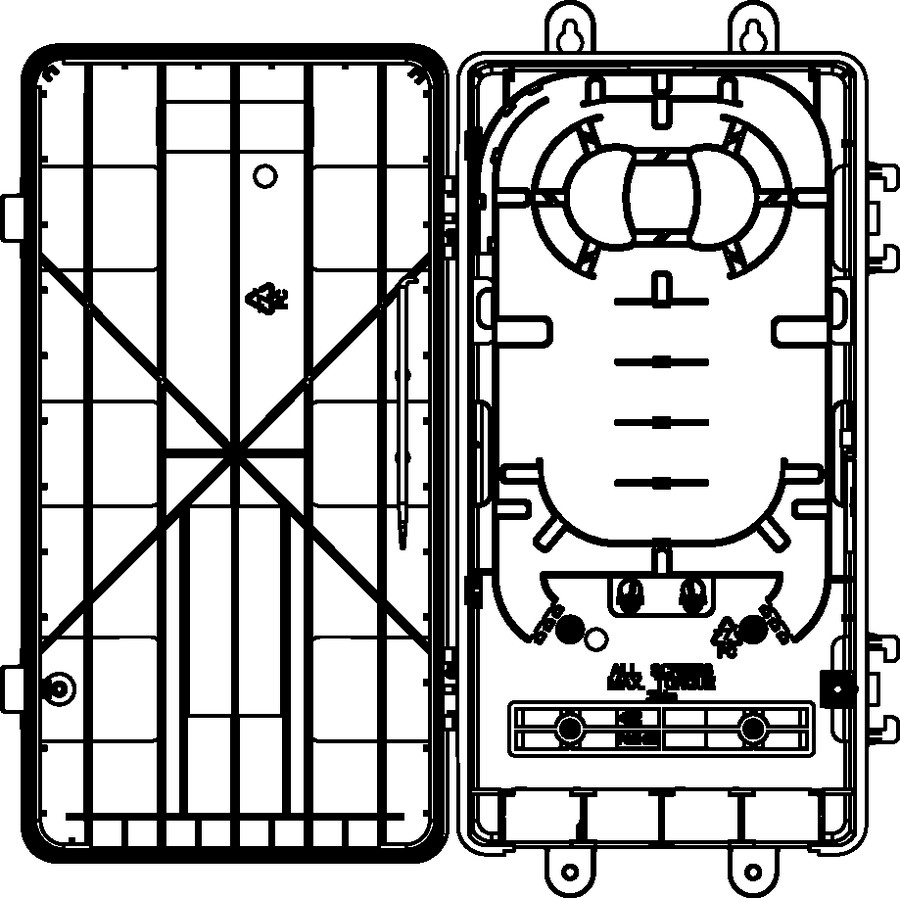

• Separation of spliced feeder cable from connectorised drop cables

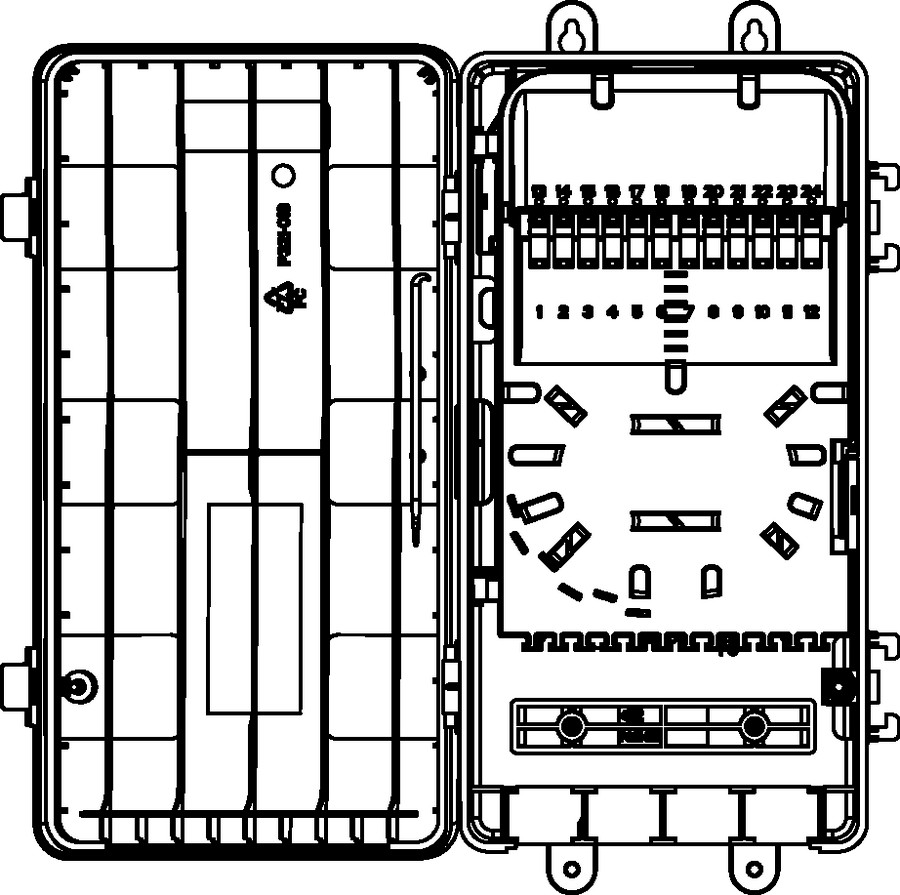

• 24 LC SX or SC SX customer connections

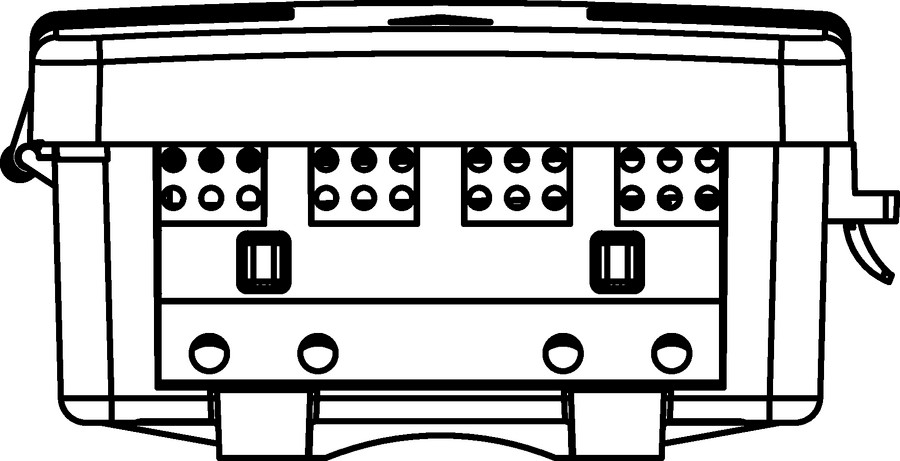

• 4 inbound/24 outbound ports

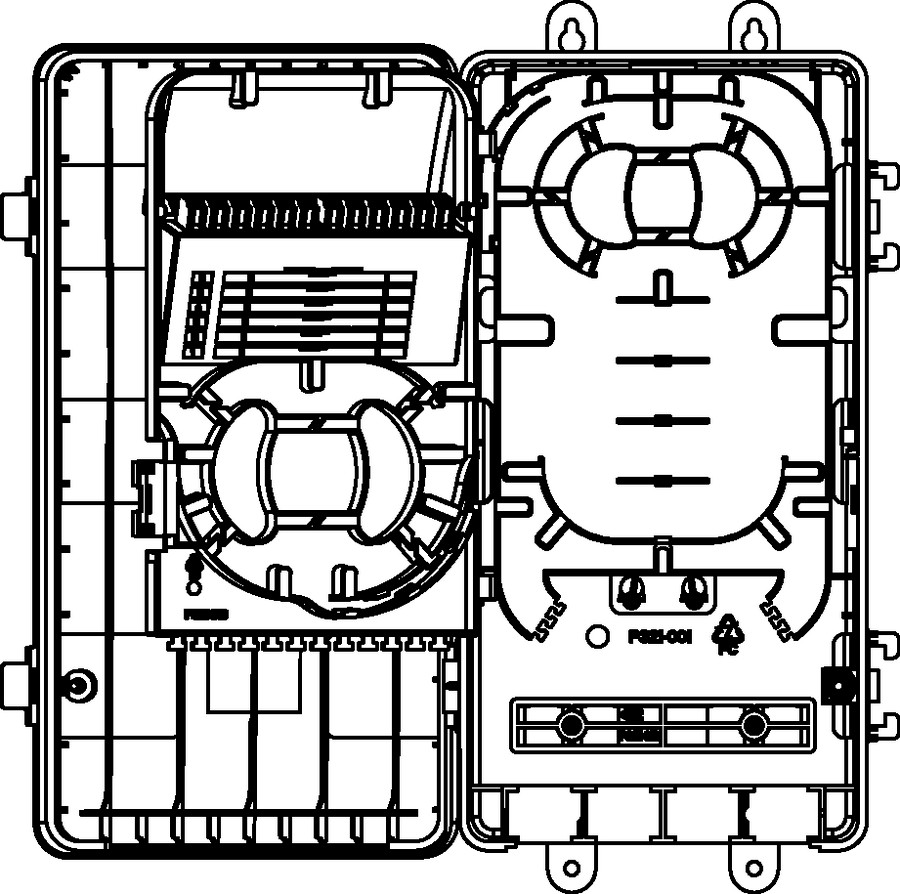

• Positive fibre management (30mm min bend radius)
• IP55 and IK08 rating
• Secure, tamper proof cover
• Physical separation of installation fibre and customer connections

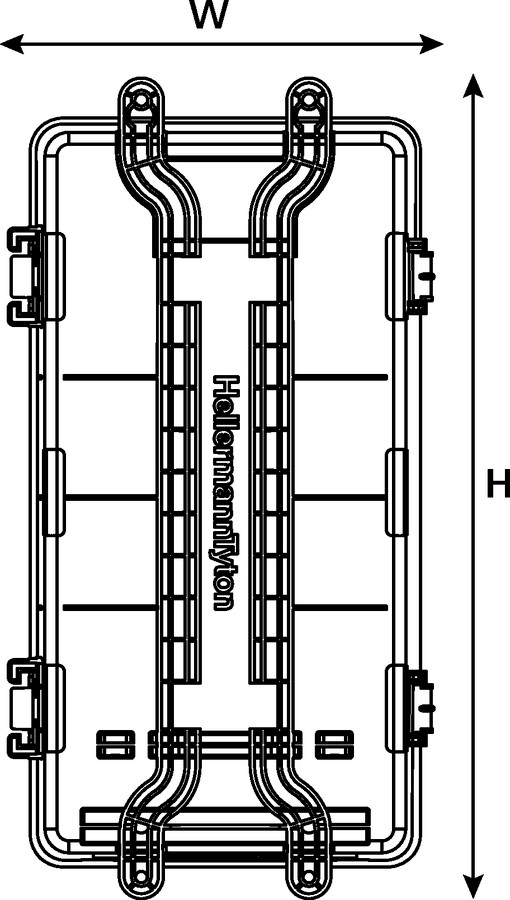

• Pole or building facade mounting features

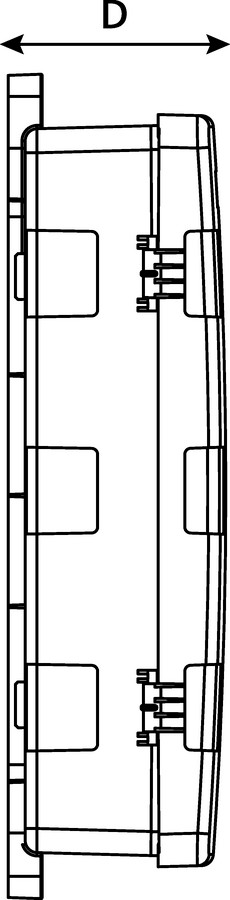

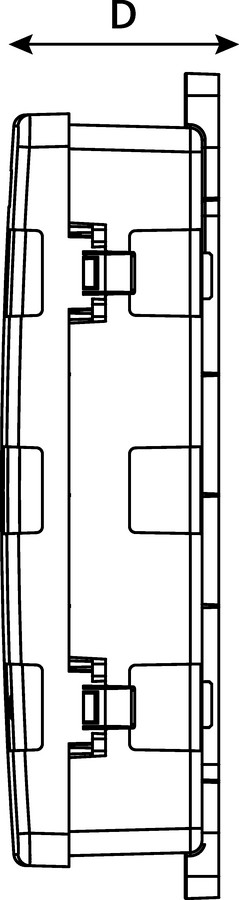

• Low profile
• Low smoke material
