Straight Duct

Straight Duct - Slotted

Article-Nr.: 181-00408

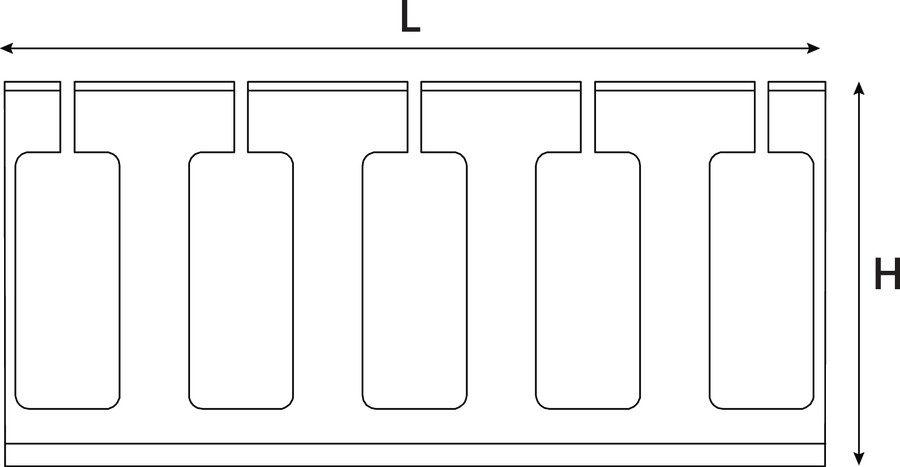

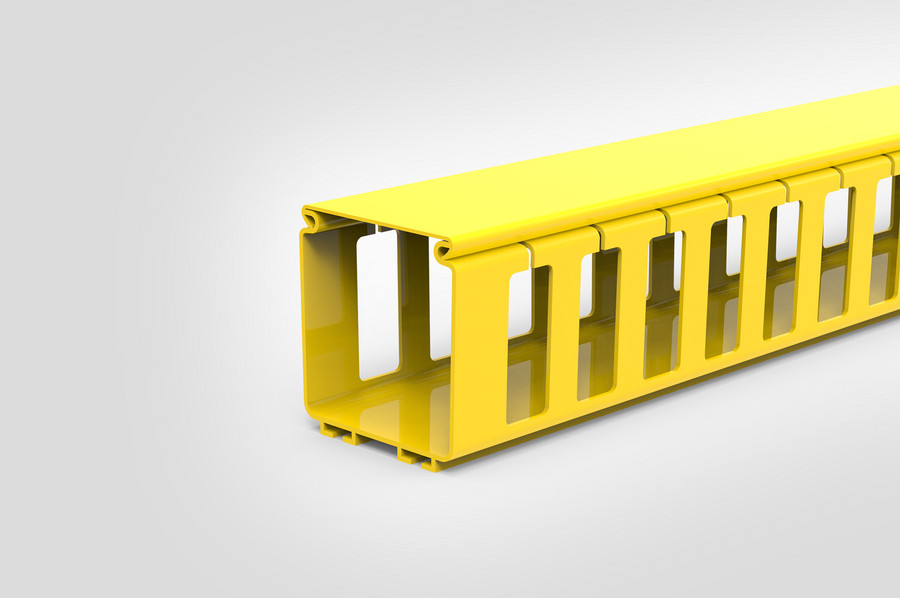

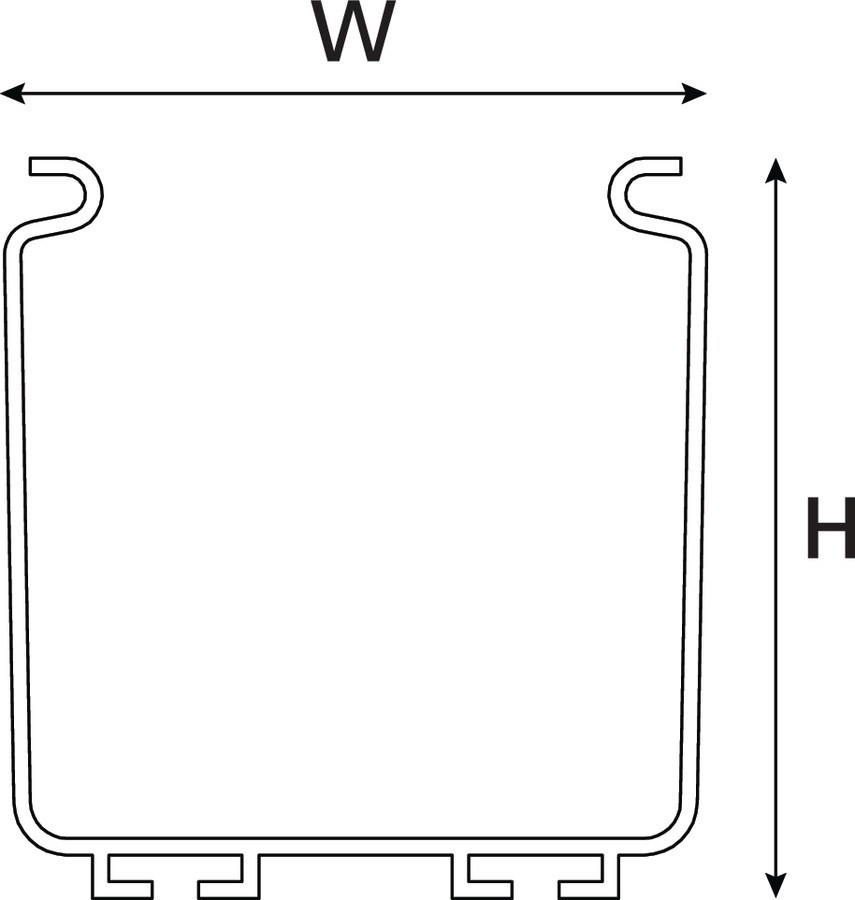

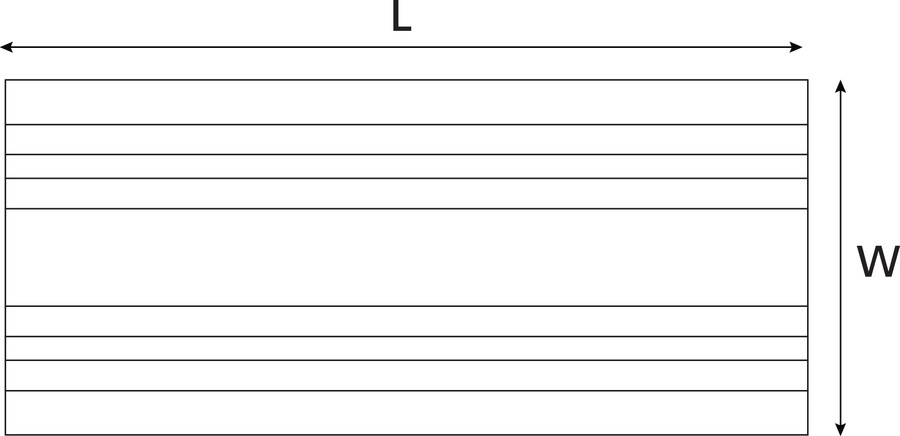

100mm Horizontal straight, slotted duct features cutouts spaced at 50mm. These slots allow fibre to vertically drop into cabinets and racks at virtually any point along the route. Exiting fibre cables can be supported by using slotted channel trumpets. Supplied in 1.8m length with cover as standard.

• Made from LSZH-FR UL94/V0 material
• Supplied in 1.8m lengths
• Compatible with 100mm GigaDuct Fibre Raceway accessories
• Supplied with cover
• Slotted feature simplifies cable routing and installation
• Segregates fibre optic cable from other media to provide flexibility for future additions or changes
• Fully encloses cables to keep out dirt and dust as the fibre is routed through different areas of the data centre
• Protects cables by maintaining proper bend radius, preventing micro bends and macro bends that degrade performance
• Maintains attractive aesthetics by enclosing cables throughout the facility
