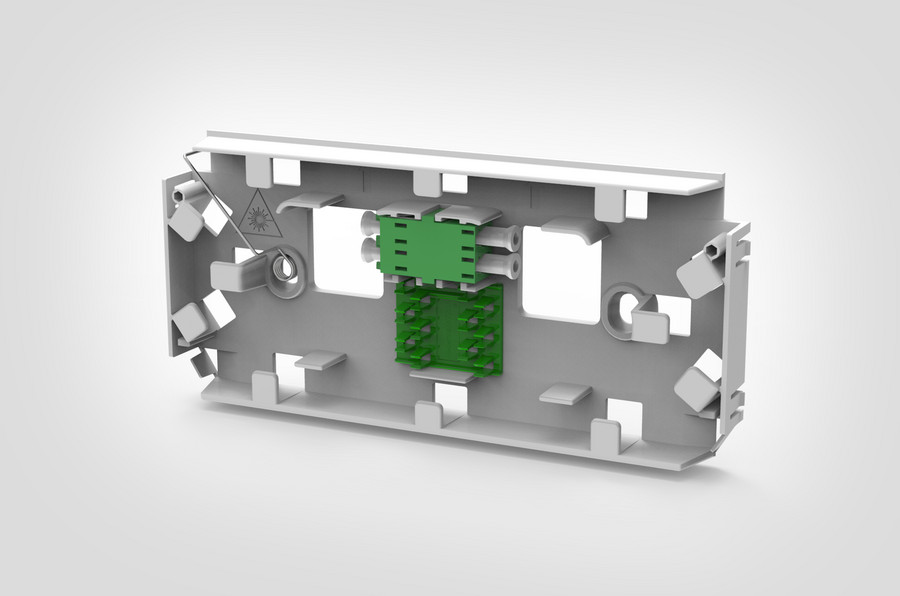

  • ICB shown with 1 x LC/APC DX and 1 x 3A bridge.
  • ICB shown with lid (front view).
  • ICB shown with lid (side view).
  • ICB shown with lid (bottom view).

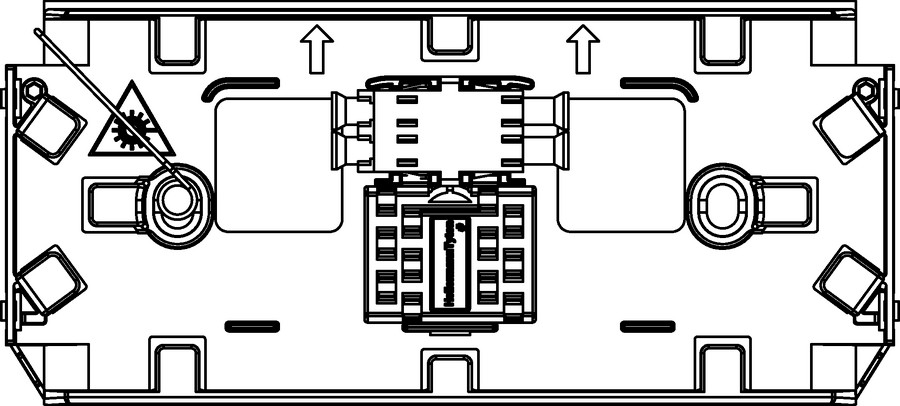

  • ICB shown with 1 x LC DX and 1 x 3A bridge.
  • ICB shown with lid on.
  • ICB shown with 1 x LC/APC DX and 1 x 3A bridge.
  • ICB shown with lid (front view).
  • ICB shown with lid (side view).
  • ICB shown with lid (bottom view).
  • ICB shown with 1 x LC DX and 1 x 3A bridge.
  • ICB shown with lid on.

ICB – Internal Corridor Box

Fibre Optic Internal Enclosure

Article-Nr.: 857-02851

  • Maximum of 4 customer connections
  • Up to 12 x 3A or ANT splices
  • Small, low profile design
  • Positive fibre management
  • 4 corner cable access points
  • Through the wall capability
  • IP20 and IK07 rating
  • Clipped on cover
  • UL94 V0 rating
  • Multi operator version
Find technical documents for the product
   Add to request

Technical details

Width (W)
144 mm
Height (H)
66 mm
Depth (D)
21 mm
Splice Protector Type
3A
Splice Capacity
12
Content
1 x ICB with Single Insert Base
1 x 3A Splice Bridge
1 x LC/APC DX Adaptor
2 x OS2 Pigtails LC/APC 1m
1 x QR code instruction Label
1 x Wall Fixing Kit
1 x Cable Retention Fire Clip
Packaging Content SKU Unit
EA
Packaging 1 - Qty
1
Packaging 1 - Type
bag
Local order number
857-02851
