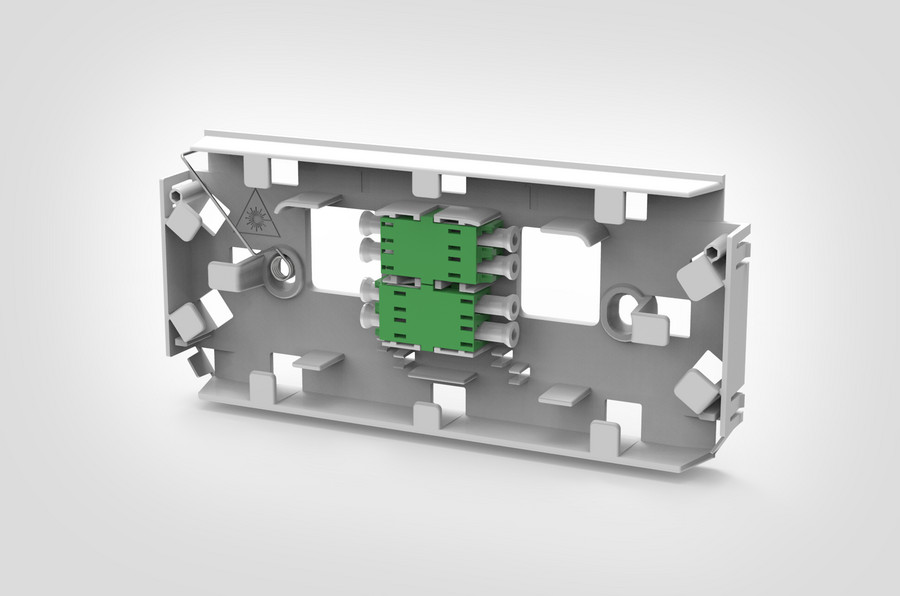

  • ICB shown with 2 x LC/APC SX.

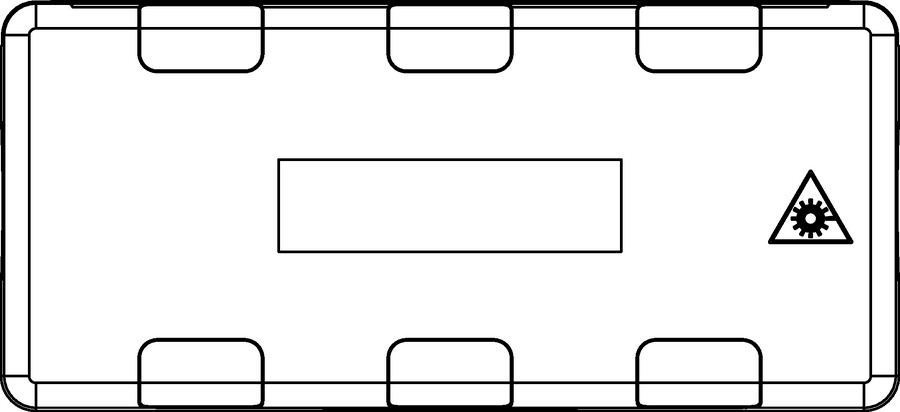

  • ICB shown with lid (front view).

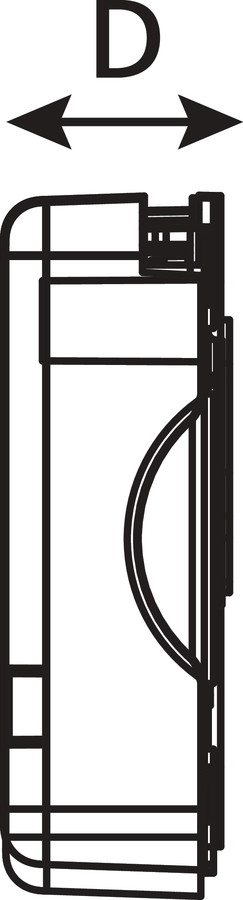

  • ICB shown with lid (side view).

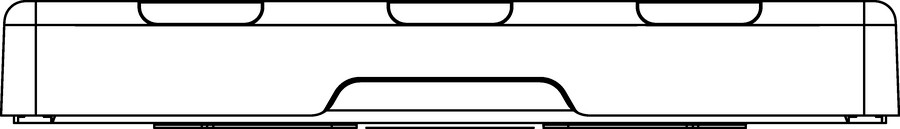

  • ICB shown with lid (bottom view).

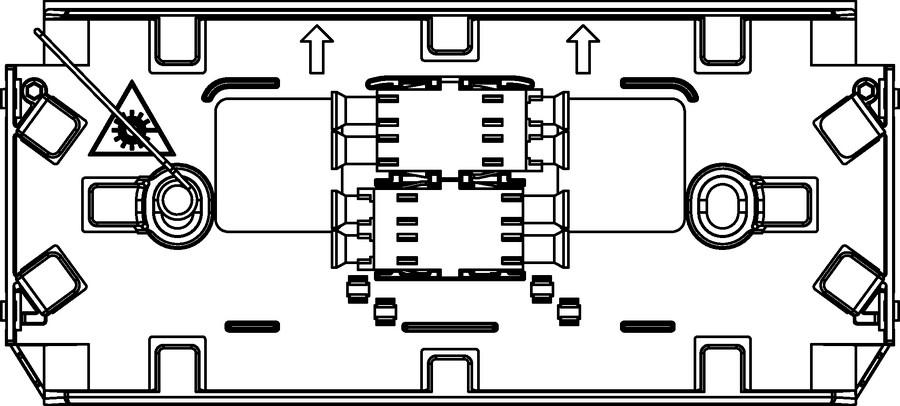

  • ICB shown with 2 x LC DX.

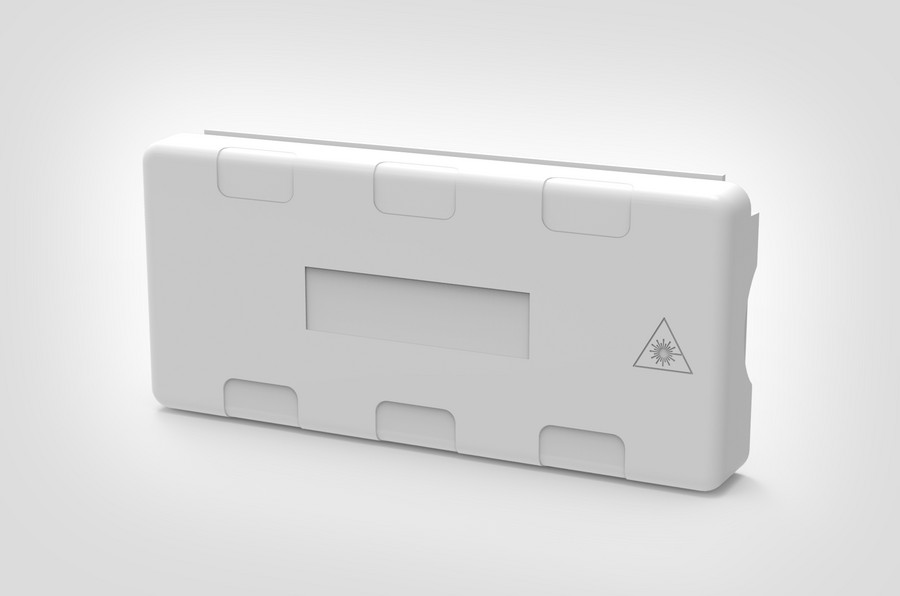

  • ICB shown with lid on.
  • ICB shown with 2 x LC/APC SX.
  • ICB shown with lid (front view).
  • ICB shown with lid (side view).
  • ICB shown with lid (bottom view).
  • ICB shown with 2 x LC DX.
  • ICB shown with lid on.

ICB – Internal Corridor Box

Fibre Optic Internal Enclosure

Article-Nr.: 857-02855

  • Maximum of 4 customer connections
  • Up to 12 x 3A or ANT splices
  • Small, low profile design
  • Positive fibre management
  • 4 corner cable access points
  • Through the wall capability
  • IP20 and IK07 rating
  • Clipped on cover
  • UL94 V0 rating
  • Multi operator version

Technical details

Width (W)144 mm
Height (H)66 mm
Depth (D)21 mm
Splice Protector Type3A
Splice Capacity4
Local order number857-02855
