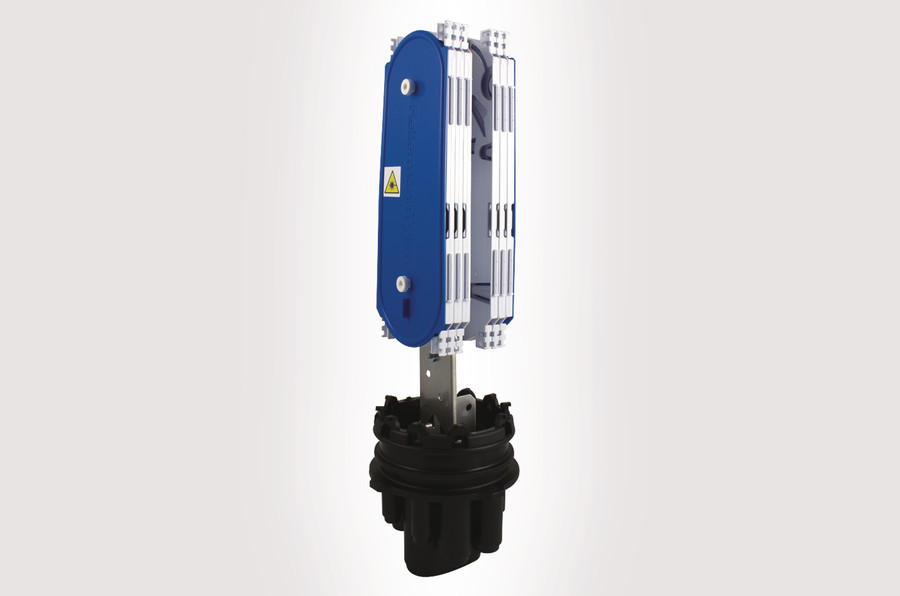

FRBU 9 Port Closure
A Length
Article-Nr.: 857-02816
Technical details
Colour
Black (BK)
Port
L, B, R
Port count
1, 4, 4
Total Port Count
9
D1
130 mm
D2
130 mm
Length
435 mm
Type of Tray
Hellapon Medium
Qty Trays
6
Splice Protector Type
Crimp (ANT), 3A
Splice Capacity
144
Basket Size
None
Method of Sealing
Cablelok, Heatshrink
Content

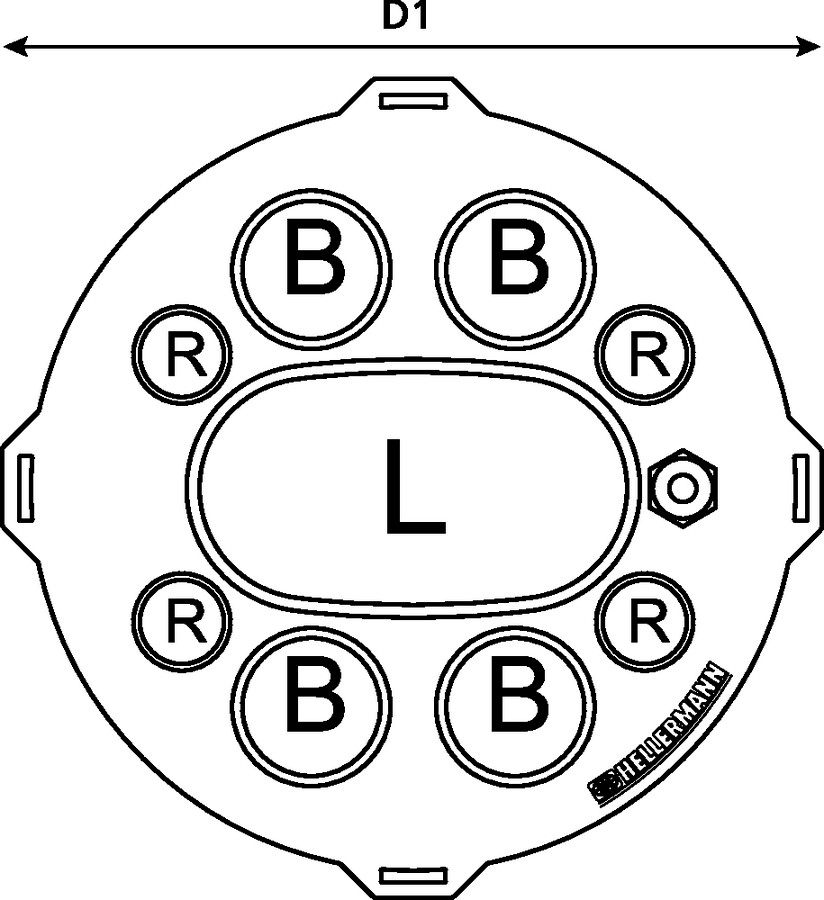

FRBU 9 Port Base
A-Length Cover (Dome)
Quick Release Clamp
Sealing ’O’ Ring
6 x Hellapon Medium ANT Splice Trays Stacked
3A Splice Protector Inserts (12)
Tray Support Frame
Anchor Fixing Kit (2)
Tray Tool
Transportation Tubing
Hook and Loop Management Ties
Cable Ties
Isopropyl Alcohol Wipes
Desiccant
Installation Guide
Marker Kit
Red Marker 1 - 12
Green Marker 1 – 12
A-Length Cover (Dome)
Quick Release Clamp
Sealing ’O’ Ring
6 x Hellapon Medium ANT Splice Trays Stacked
3A Splice Protector Inserts (12)
Tray Support Frame
Anchor Fixing Kit (2)
Tray Tool
Transportation Tubing
Hook and Loop Management Ties
Cable Ties
Isopropyl Alcohol Wipes
Desiccant
Installation Guide
Marker Kit
Red Marker 1 - 12
Green Marker 1 – 12
Packaging 1 - Qty
1
Packaging 1 - Weight (kg)
2.3 kg
Packaging 1 - Type
box
Packaging 1 - Width (m)
0.16 m
Packaging 1 - Height (m)
0.59 m
Packaging 1 - Length (m)
0.16 m
Local order number
857-02816
