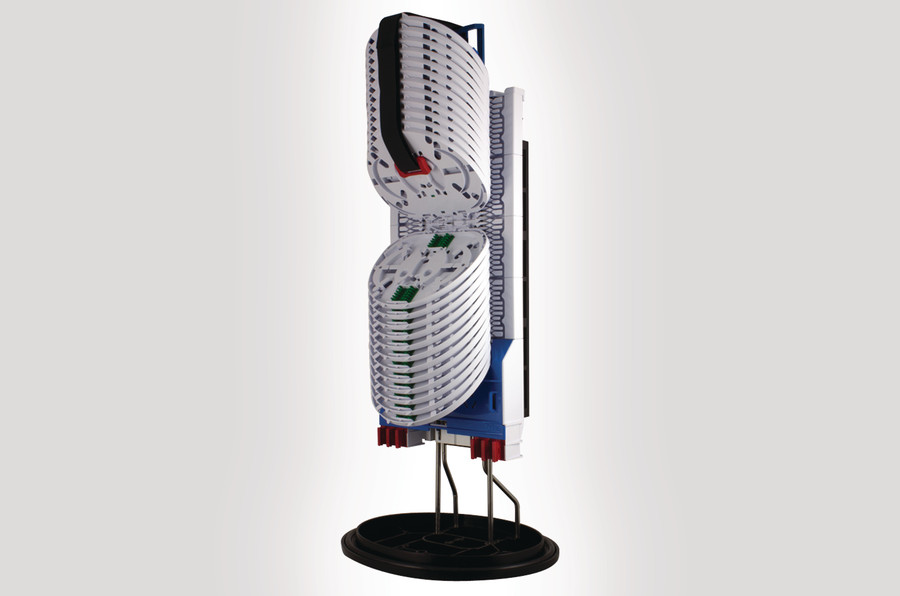

  • FDN IR 59 Port B-Length Closure with basket

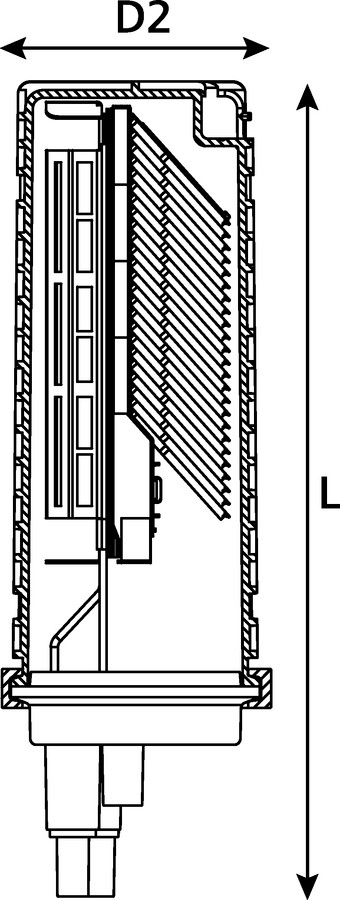

  • FDN IR 59 Port Base B-Length Closure with basket
  • FDN 59 Port Base Configuration
  • FDN with basket, cover and clamp (top view)

FDN 59 Port Integrated Routing Closure

B Length with Basket

Article-Nr.: 857-02815

  • Maximum 288 fibre splice capacity
  • 58 round ports and 1 oval port
  • Moulded supports allow the cover to be removed whilst closure is left in-situ
  • Fixing points for external cable management attachments
  • Positive fibre management to ensure consistent 15mm bend radii throughout
  • Fibre storage basket for loop through applications
  • Bi-directional fibre routing
  • Supplied with 24 SE-IR MKII Trays fitted with 2 x ANT (Yellow) splice protector inserts
  • Maximum 12 splices per tray
  • Supplied with 48 x 3A splice protector inserts (Green)
  • Splitter accommodation
  • Cablelok compatible for all port sizes
  • Quick release cover
  • Optional pressure release valve
Find technical documents for the product
   Add to request

Technical details

Variant
Outdoor FTTx Enclosures
Length (L)
663 mm
Colour
Black (BK)
Port
L, T, S, B, R
Port count
1, 2, 4, 2, 52
Total Port Count
61
D1
312 mm
D2
222 mm
Length
663 mm
Type of Tray
Integrated Routing SE MKII
Qty Trays
24
Splice Protector Type
Crimp (ANT), 3A
Splice Capacity
576
Basket Size
Medium
Method of Sealing
Cablelok, Heatshrink
Content
FDN 59 Port IR Base
B-Length Cover
Quick Release Clamp
Sealing ‘O’ Ring
Fibre Storage Basket
Fibre Optic Routing Module
Fibre Optic Storage Unit
Fibre Optic Storage Unit Lid
Fibre Slot Entry Module
Fibre Slot Retaining Block
24 x SE-IR MKII ANT Splice Trays
48 x 3A Splice Protector Inserts
Reusable Cable Ties
Tray Lid
Tray Tool
Anchor Fixing Kit (3)
Spiral Binding
Isopropyl Alcohol Wipes
Desiccant
Installation Guide
Marker Kit
Red Marker 1 – 12
Green Marker 1 – 12
Packaging 1 - Qty
1
Packaging 1 - Weight (kg)
7.20 kg
Packaging 1 - Type
box
Packaging 1 - Width (m)
0.32 m
Packaging 1 - Height (m)
0.72 m
Packaging 1 - Length (m)
0.32 m
Local order number
857-02815

Products listed are for standard configurations, other configurations and splice insert types are available - see Page 176
