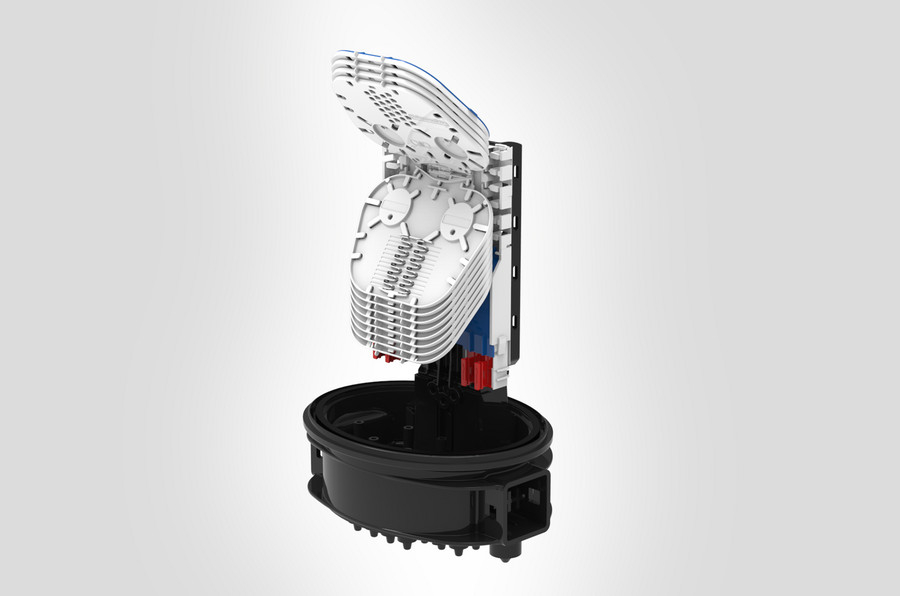

  • S-Length 27 Port CFN with Compact SC-B Trays.

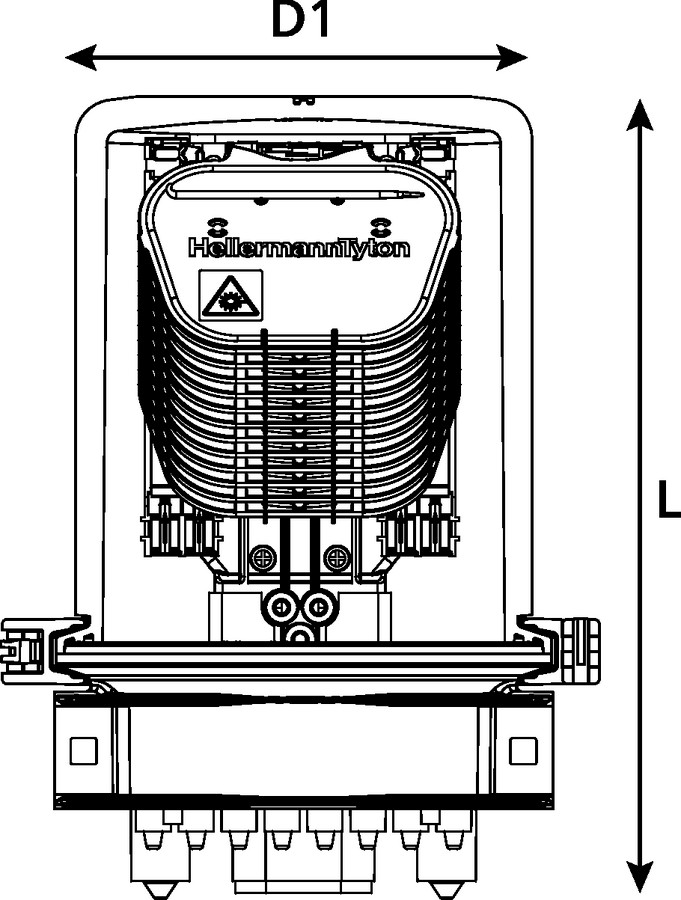

  • CFN 27 Port S-Length with Compact SC-B Trays (front view)

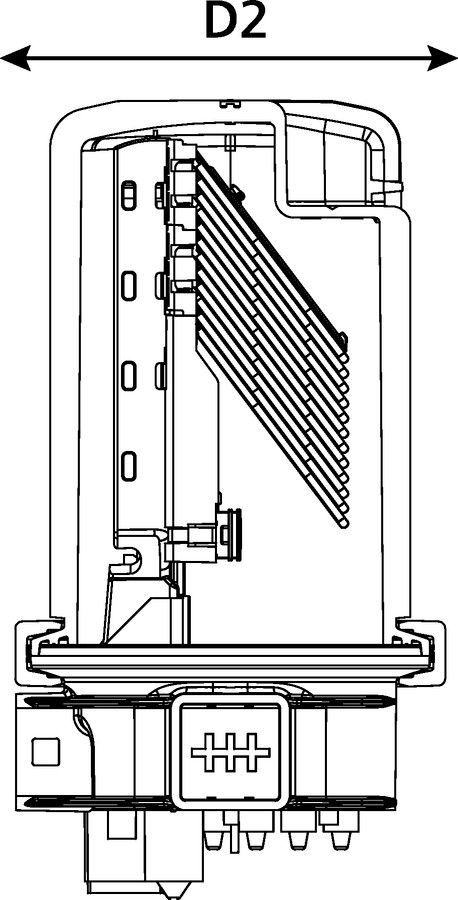

  • CFN 27 Port S-Length with Compact SC-B Trays (side view)
  • CFN 27 Base Port Diagram.

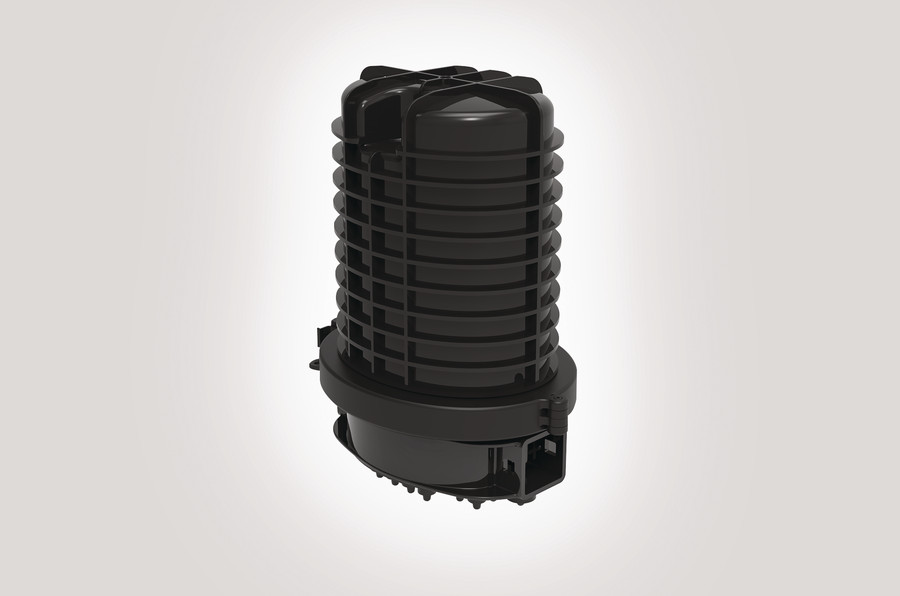

  • S-Length 27 Port CFN with Compact SE-IR Trays.
  • S-Length 27 Port CFN with Compact SC-B Trays.
  • CFN 27 Port S-Length with Compact SC-B Trays (front view)
  • CFN 27 Port S-Length with Compact SC-B Trays (side view)
  • CFN 27 Base Port Diagram.
  • S-Length 27 Port CFN with Compact SE-IR Trays.

CFNIRS 27 Port Integrated Routing Closure

S Length

Article-Nr.: 857-02521

  • Maximum 144 fibre splice capacity
  • 26 round ports and 1 oval port
  • Foam Entry Block
  • Positive fibre management to ensure consistent 15mm bend radius throughout
  • Fibre storage basket for loop through applications
  • Bi-directional fibre routing
  • Supplied with 6 SE-IR 3A Splice Trays
  • Maximum 24 splices per tray (double stacked)
  • Splitter accommodation
  • Cablelok compatible for all port sizes
  • Quick release cover
  • Optional pressure release valve
Find technical documents for the product
   Add to request

Technical details

Variant
Outdoor FTTx Enclosures
Length (L)
335 mm
Colour
Black (BK)
Port
LM, B, R
Port count
1, 2, 24
Total Port Count
27
D1
250 mm
D2
180 mm
Length
335 mm
Type of Tray
Compact SE
Qty Trays
6
Splice Protector Type
3A
Splice Capacity
144
Basket Size
Small
Method of Sealing
Cablelok
Content
CFN 27 Port Base
S Length Cover
Quick Release Clamp
Sealing 'O' Ring
Fibre Optic Routing Module
Fibre Optic Storage Unit with Foam Entry Block
Fibre Optic Storage Unit Lid
12 x SC-B IR 3A Compact Splice Trays
Tray Lid
Anchor Fixing Kit (2)
Fibre Pricker
Hook and Loop Management Ties
Installation Guide
Packaging Content SKU Unit
EA
Packaging 1 - Qty
1
Packaging 1 - Weight (kg)
2.8 kg
Packaging 1 - Type
box
Packaging 1 - Width (m)
0.178 m
Packaging 1 - Height (m)
0.25 m
Packaging 1 - Length (m)
0.45 m
Local order number
857-02521
