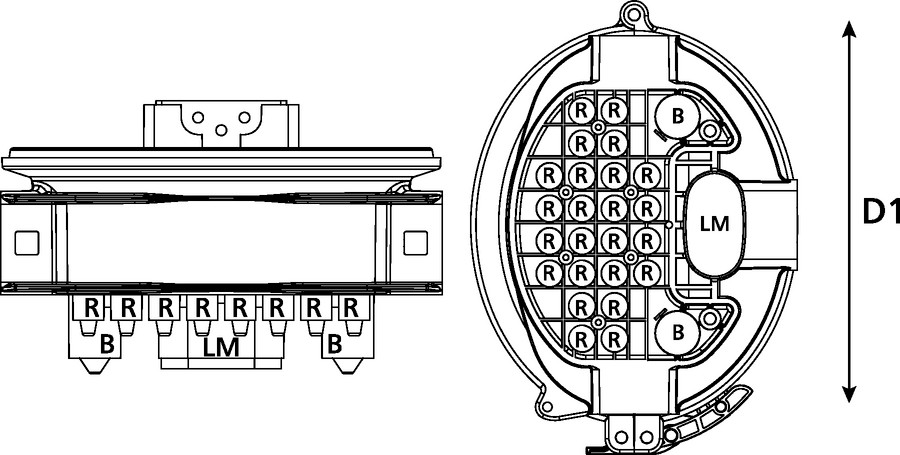

  • CFN 27 Base Port Diagram.

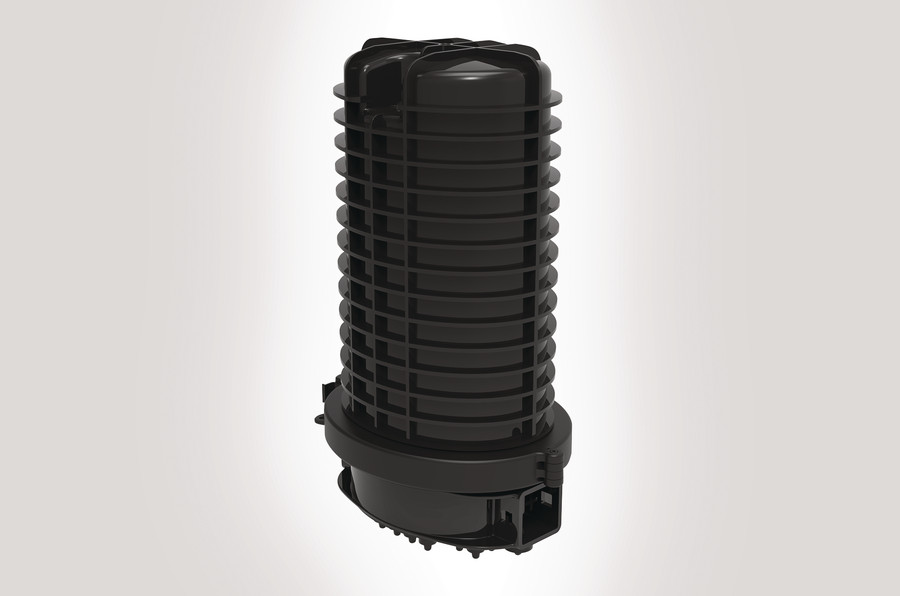

  • M-Length 27 Port CFN with Compact SE-IR Trays.
  • CFN 27 Base Port Diagram.
  • M-Length 27 Port CFN with Compact SE-IR Trays.

CFNIRS 27 Port Integrated Routing Closure

M Length

Article-Nr.: 857-02808

  • Maximum 288 fibre splice capacity
  • 26 round ports and 1 oval port
  • Foam Entry Block
  • Positive fibre management to ensure consistent 15mm bend radius throughout
  • Fibre storage basket for loop through applications
  • Bi-directional fibre routing
  • Supplied with 12 SE-IR ANT Splice Trays
  • Maximum 24 splices per tray (double stacked)
  • Additional 3A splice protector inserts
  • Splitter accommodation
  • Cablelok compatible for all port sizes
  • Quick release cover
  • Optional pressure release valve
Find technical documents for the product
   Add to request

Technical details

Variant
Outdoor FTTx Enclosures
Length (L)
410 mm
Colour
Black (BK)
Port
LM, B, R
Port count
1, 2, 24
Total Port Count
27
D1
250 mm
D2
180 mm
Length
410 mm
Type of Tray
Compact SE
Qty Trays
12
Splice Protector Type
Crimp (ANT), 3A
Splice Capacity
288
Basket Size
Medium
Method of Sealing
Cablelok
Content
CFN 27 Port Base
M Length Cover
Quick Release Clamp
Sealing 'O' Ring
Fibre Optic Routing Module
Fibre Optic Storage Unit with Foam Entry Block
Fibre Optic Storage Unit Lid
12 x SE-IR ANT Compact Splice Trays
3A Splice Protector Inserts (24)
Tray Lid
Anchor Fixing Kit (2)
Fibre Pricker
Hook and Loop Management Ties
Installation Guide
Packaging 1 - Qty
1
Packaging 1 - Weight (kg)
2.8 kg
Packaging 1 - Type
box
Packaging 1 - Width (m)
0.178 m
Packaging 1 - Height (m)
0.25 m
Packaging 1 - Length (m)
0.45 m
Local order number
857-02808
