House lead-ins ADSB/ADSB-D/ADSB-F.

Set ADSB-D 9,0-12,5

Article-Nr.: 42160

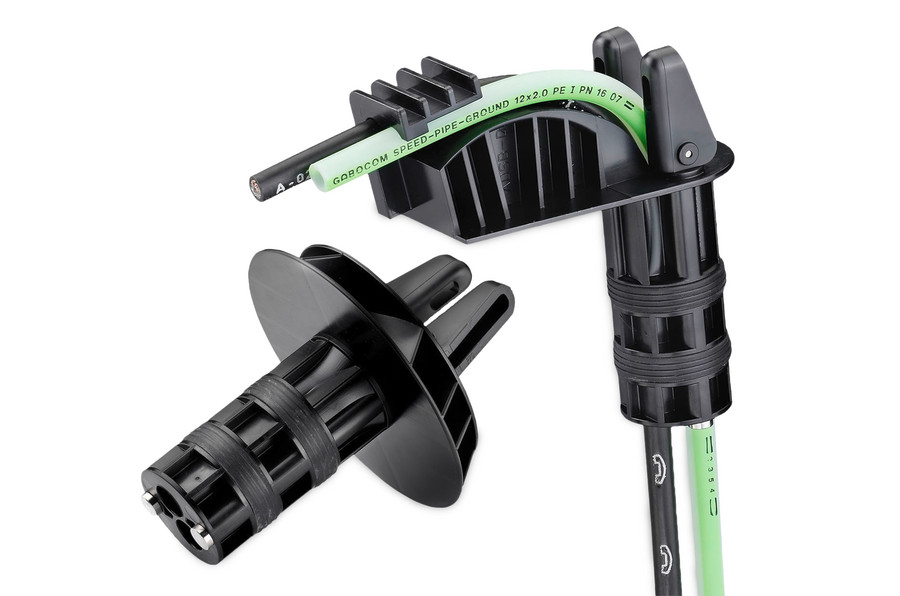

gabocom offers two different sealing elements with protective bend: ADSB (single) and ADSB-D (double). Both versions include an inside- and outside-part with integrated sealing that allow the house lead-in of cables or speedpipe ground in the cellar. Without the use of tools - they are suitable for the application in environments with soil moisture or non-pressing water, gas- and water-tight up to 1 bar.The ADSB-F can also be installed in buildings without basement and can be installed with an installation angle of up to 30°. After the blowing-in process the speedpipe ground is fed into the integrated deflection pulley and lead along the cellar wall.From a wall thickness of over 400 mm upwards or in hollow block, the additional use of the sanded sleeve is recommended.

• water impact classes according to DIN 18533: W1.1-E: Soil moisture and non-pressing water in floor slabs and walls in contact with the ground; W1.2-E: Soil moisture and non-pressing water in floor slabs and walls in contact with the ground with drainage
• gas and water tightness: 1 bar
• principle of sealing: integrated sealing element
• installation in concrete wall: no auxiliary material needed
• installation in hollow block: sanded sleeve
