Article-Nr.: 4825

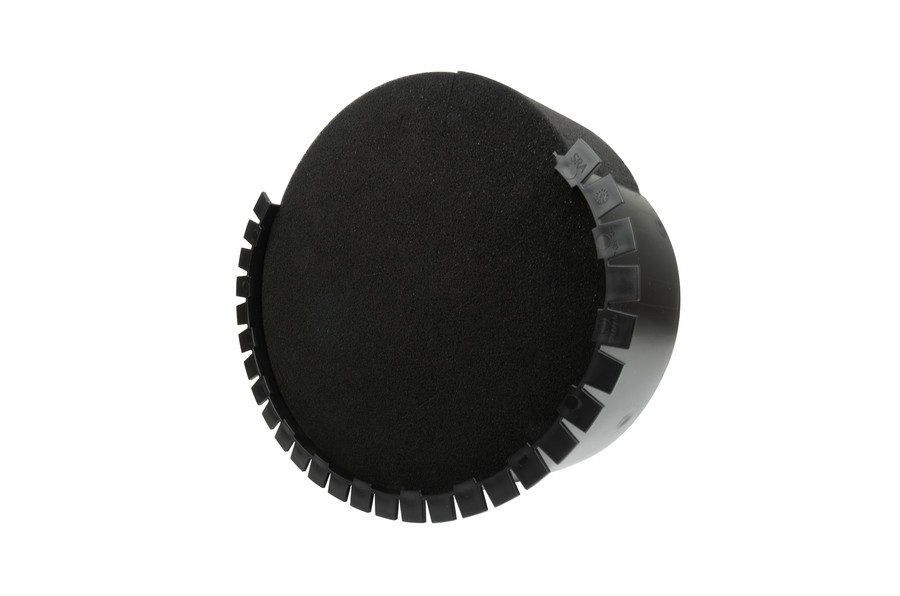

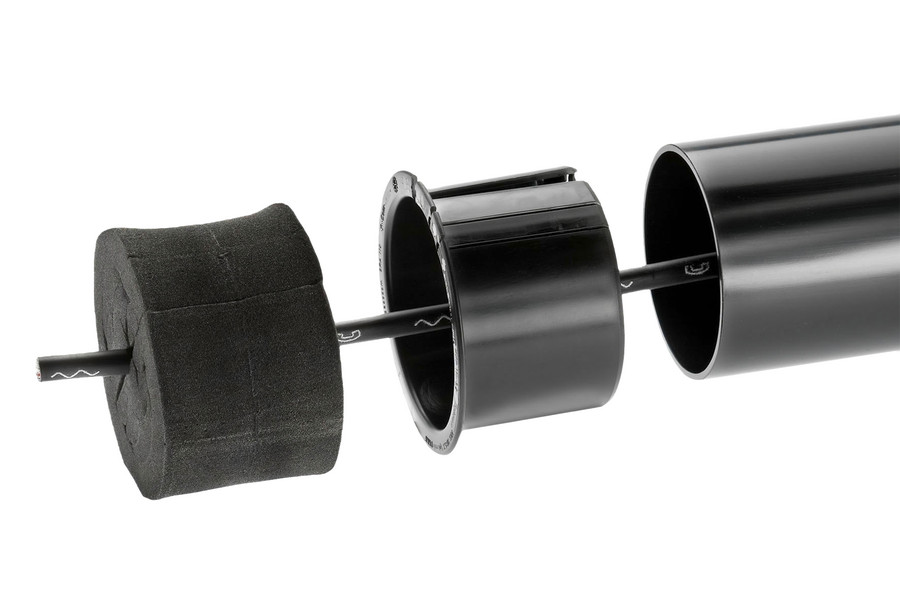

SRA protective duct seals are used at intersections and on unassigned (i.e. empty) protective cable tubes to protect them against sand. Due to pre-stamped sealing bodies, tubes containing cables are protected against the ingress of fine sand. These high-quality shaped parts fit inside cable duct tube sleeves and plug-in tips. They are quick and easy to install and eliminate the need for unsafe makeshift solutions. No tools are required for removal and subsequent reuse.
| Diameter (D) | 200 |
| Application Method | inner duct Ø 165-205 |
| Length (L) | 113 mm |
| Width (W) | 255 mm |
| Height (H) | 225 mm |
| Colour | Black (BK) |
| Weight/Unit | 0.335 kg |
| Packaging Content SKU Unit | pcs. |
| Packaging 1 - Qty | 12 |
| Packaging 1 - Weight (kg) | 4.7 kg |
| Packaging 1 - Type | carton |
| Packaging 2 - Qty | 96 |
| Packaging 2 - Type | pallet |
| Local order number | 4825 |
All dimensions in mm. Subject to technical changes.
