speedpipe indoor
Particularly inside buildings very strict material requisitions come into application - especially with regard to fire protection. The speedpipe indoor system masters the transition between optimum safety, optimum blowing in characteristics and ease of assembly.
Provision is obligatory - and meanwhile set in stone for the whole European Union:
"The existence of high-speed electronic communications networks up to the end-user should be facilitated [...] in particular by high-speed-ready in-building physical infrastructure. Given that providing for mini-ducts during the construction of a building has only a limited incremental cost [...] all new buildings or buildings subject to major renovation should be equipped with physical infrastructure, allowing the connection of end-users with high-speed networks."
(Extract from the EU-Directive 2014/61/EU)
Regardless of legal obligations particularly in apartment buildings or heavily loaded building networks the infrastructure within the building cover must be suitabel for the quick connection to outside.
Seminar "Modern building networks with fibre optics from the basement to the flat"
Do not hesitate to contact us directly if you are interested in a seminar:
speedpipe indoor
Secure networks in the building.
In terms of their technical properties, speedpipe indoor stand up to all requirements. According to the EU Low-Voltage Directive 2014/35/EU the speedpipe indoor system entirely is tested in accordance with EN 61386-22, e.g.
• fire tests corresponding to the statutory security objectives
• regulations for installation and laying
• compatibility with firewalls
• speedpipe indoor are flame-retardant and tested according to EN 60684-2 with regard to the absence of halogens and EN 61034-2 with regard to low smoke density.
speedpipe indoor
divisible indoor connectors
Connect occupied speedpipe indoor.
product details:
• hardly inflammable and halogen-free
• connect speedpipe indoor
• gas- and watertight up to 0.5 bar
• tensile
• divisible
• reusable
• easy and quick to install
divisible indoor connectorsindoor connectors
Safe connection for speedpipe indoor.
product details:
• hardly inflammable and halogen-free
• connect speedpipe indoor
• pressure-tight up to 15 bar
• tensile
• reusable
• easy and quick to install

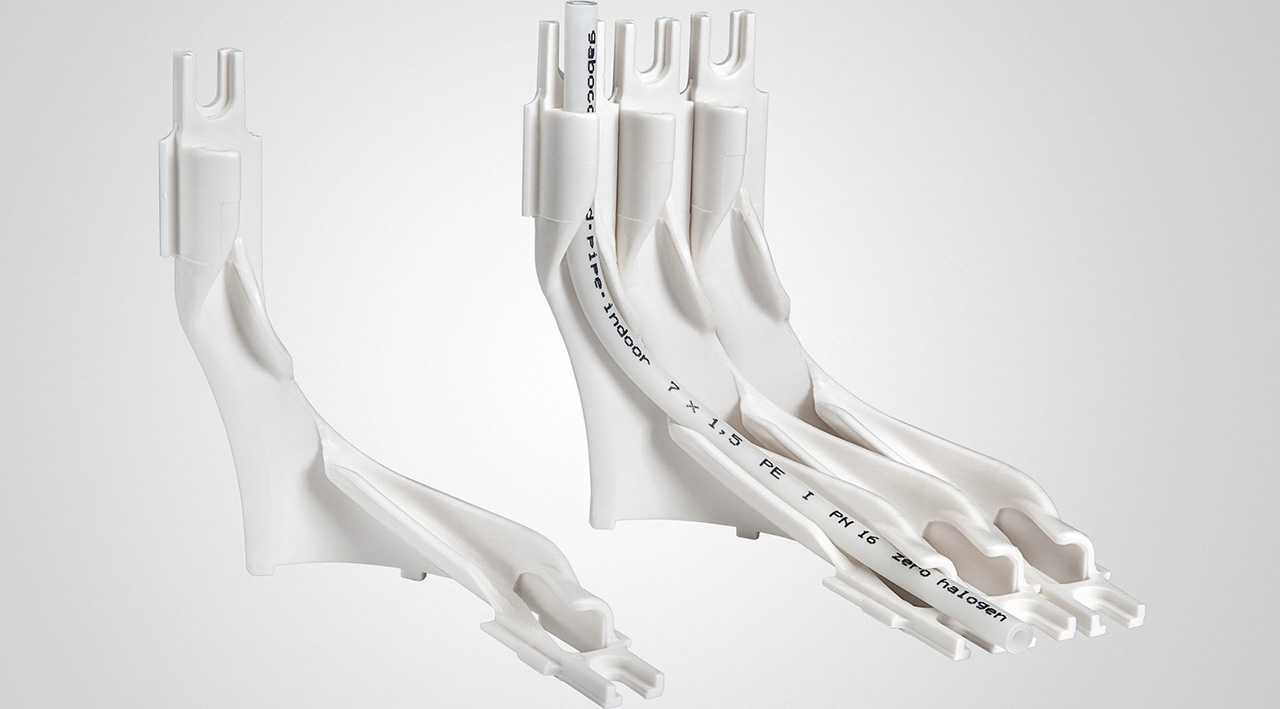

indoor connectorsindoor bends
At a safe angle without kinking.
product details:
• hardly inflammable and halogen-free
• serves for the deflection of speedpipe indoor inside the building without any kinks
Any number of indoor bends can be connected.
indoor bendsHouse lead-ins
House lead-ins guarantee professional, reliable building sealing. Whether through the basement wall or above ground through the house wall: they can be installed quickly and safely and are gas- and watertight. The installation can be done in all common wall types.

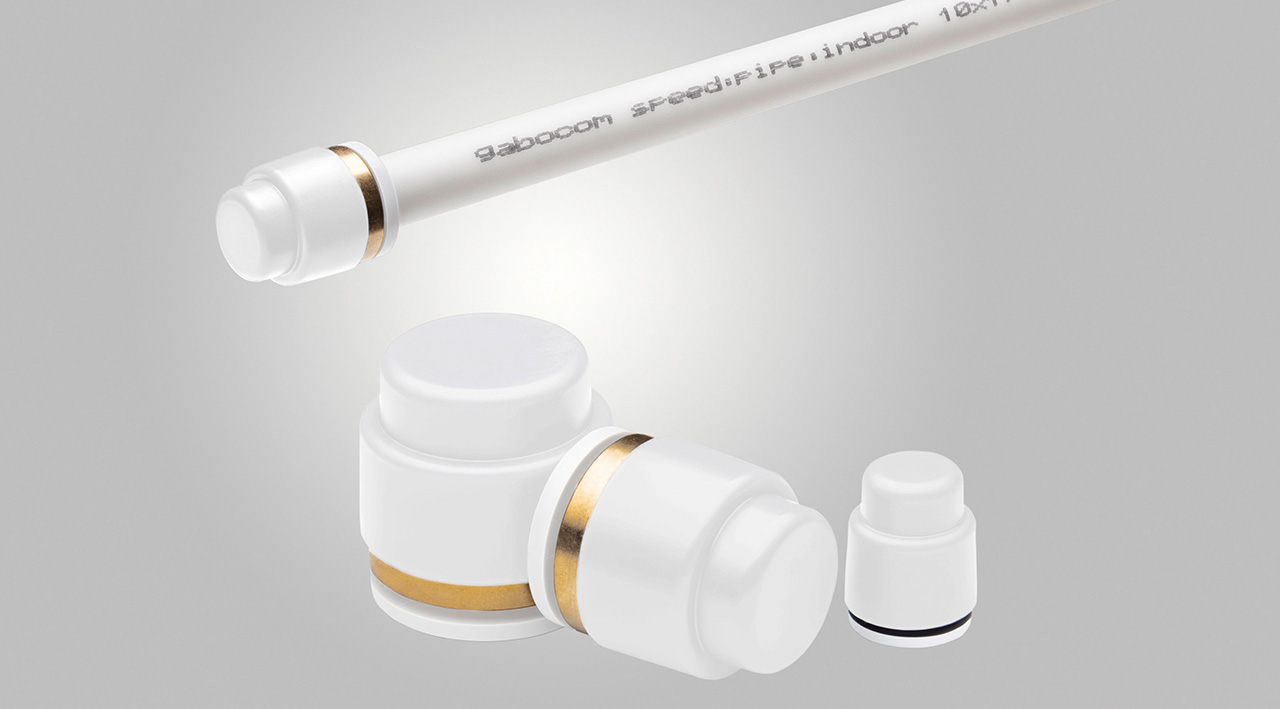

house lead-insindoor end-stops
Seal speedpipe indoor safely.
product details:
• seal speedpipe indoor safely
• hardly inflammable and halogen-free
• gas- and watertight up to 0.5 bar
• tensile
• reusable
• easy and quick to install
indoor end-stopsDivisible indoor seals
Fixing and sealing.
product details:
• for sealing empty and occupied speedpipe indoor
• flame-retardant and halogen-free
• tensile
• gas- and water-tight up to 0.5 bar
• contain a lead for fiber optic cables
• reusable
• easy and quick to install
The integrated safety valve opens before a possible blow-in pressure of 10 bar is reached.
divisible Indoor sealsdivisible indoor seals EZA-t micro
Fixing and sealing in the tightest of spaces.
product details:
• compact design
• seal occupied speedpipe indoor
• different coloured sealing rubbers fit perfectly to all common cable diameters
• tensile and stable
• gas- and watertight up to 0.5 bar
• easy and quick to install
divisible indoor seals EZA-t microindoor indification labels with microduct endcaps
Labelling and sealing.
product details:
• labelling speedpipe indoor with the customer‘s address in the
distribution area by means of a permanent marker
• sealing of empty speedpipe indoor
• by breaking off the protective cap, the customer‘s address remains at the speedpipe indoor after occupation with a fibre optic cable
• gas- and watertight up to 0.5 bar
• easy and quick to install
indoor indification labels with microduct endcapsDivisible indoor seals with gas-stop
For secure networks.
product details:
• hardly inflammable and halogen-free
• connect occupied speedpipe indoor
• integrated gas-stop
• divisible and tensile
• gas- and watertight up to 0.5 bar (also in longitudinal direction)
• reusable
• easy and quick to install
divisible indoor seals with gas-stopspeedpipe coil
speedpipe coils help to prepare and realize house connections efficiently.
- House branches from the speedpipe bundle can already be made when the main line is laid and can be laid on the property as required.
- The microduct can be laid from the speedpipe coil to the inside of the building for later connection.
- In areas where broadband expansion has not yet been completed, the speedpipe coil can be used to lay the microduct from the house to the street so that the microduct can then be connected to the main route at a later date. This means that new civil engineering work on private property can be avoided.
speedpipe coil
