stiffeners for bundles with lose outer sheath

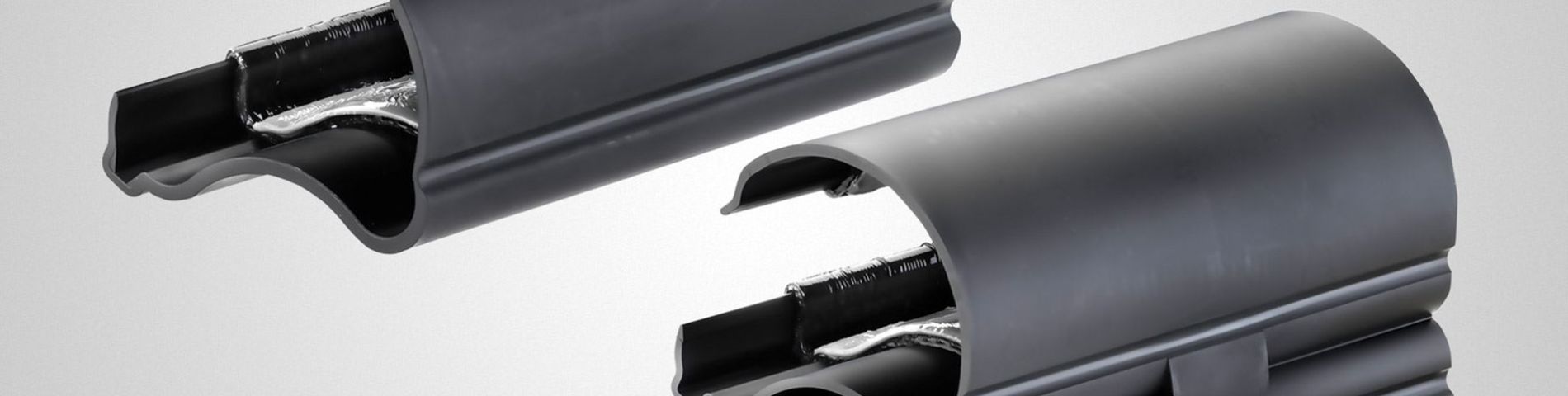

(Double-) outside stiffener - for bundles SRV:
The sealing element ADE / TDUX 90 / 100 (CommScope) seals occupied cable ducts > 110 mm. Thereto the siffeners strengthen the flexible jacket duct of up to two SRV 50 / 8 x 10 from the outside. Thus the divisible fittings avoid that the pressure of the TDUX changes the shape of the internal speedpipe (ovalisation).
Fibre optic cables furtheron can be blown in.
Inside stiffener - for all in-duct bundles:
before assembling the divisible seals the flexible jacket duct of the speedpipe bundle SRV and SRV-G is strengthened with a stiffener. A round duct with a standardised diameter is the result. The clamping rings of the sealing elements gain traction without damaging the internal speedpipe.
Name D (mm) Pcs. / PU Art. No. SHi 32 32 24 4857 SHi 40 40 12 4863 SHi 50 50 12 4547 SHi 63 65 12 1066 Name D (mm) Pcs. / PU Art. No. SHa 50 50 12 4584 Name D (mm) Pcs. / PU Art. No. DSHa 50 50 12 4565 - After entering your personal data, you will receive access data to our download module to the email address you provided. You can then download the required documents for this product. Please select the relevant documents above the form.
Download description Category Last update SHi Assembly instructions 23.02.2022 SHa / DSHa Assembly instructions 23.02.2022 SHa / DSHaAccess to the document, register here. Technical data sheets 11.08.2021 SHiAccess to the document, register here. Technical data sheets 11.08.2021 You have questions about gabo Systemtechnik GmbH?
